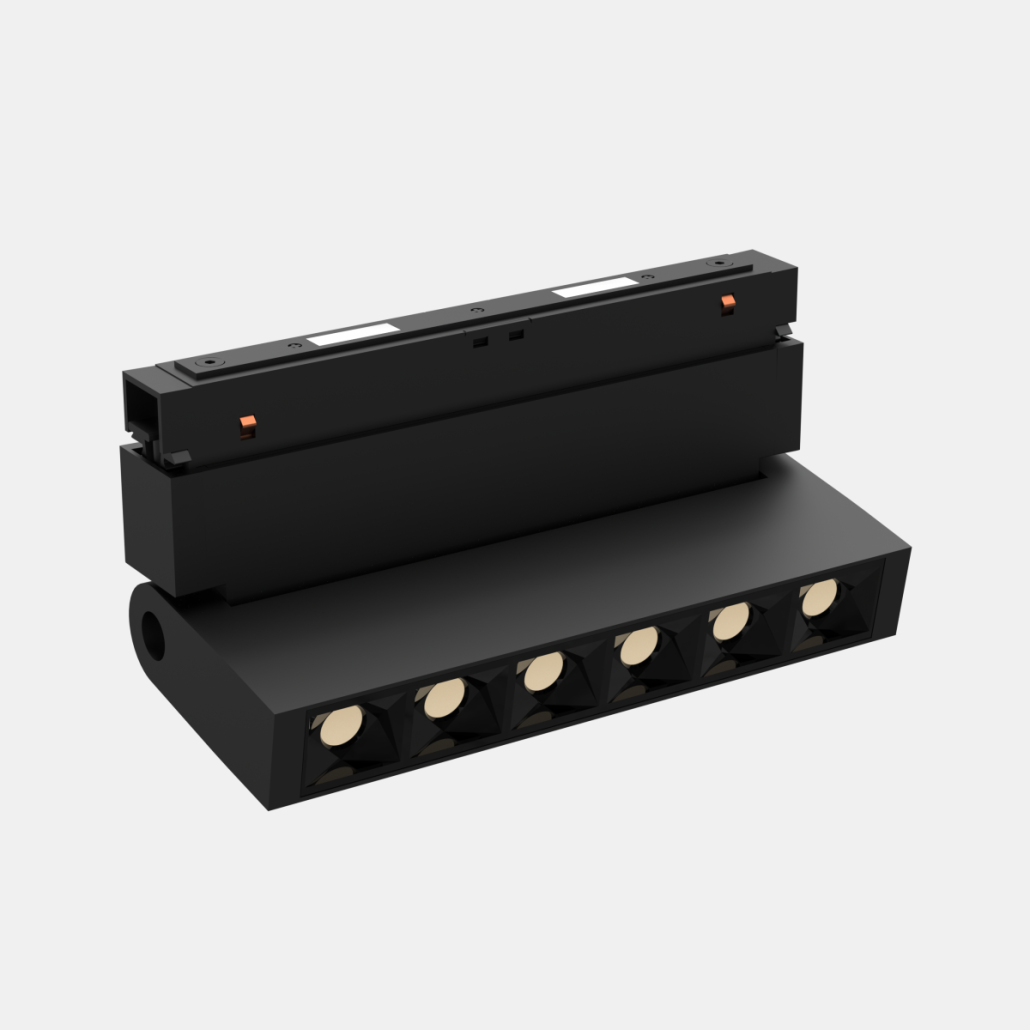

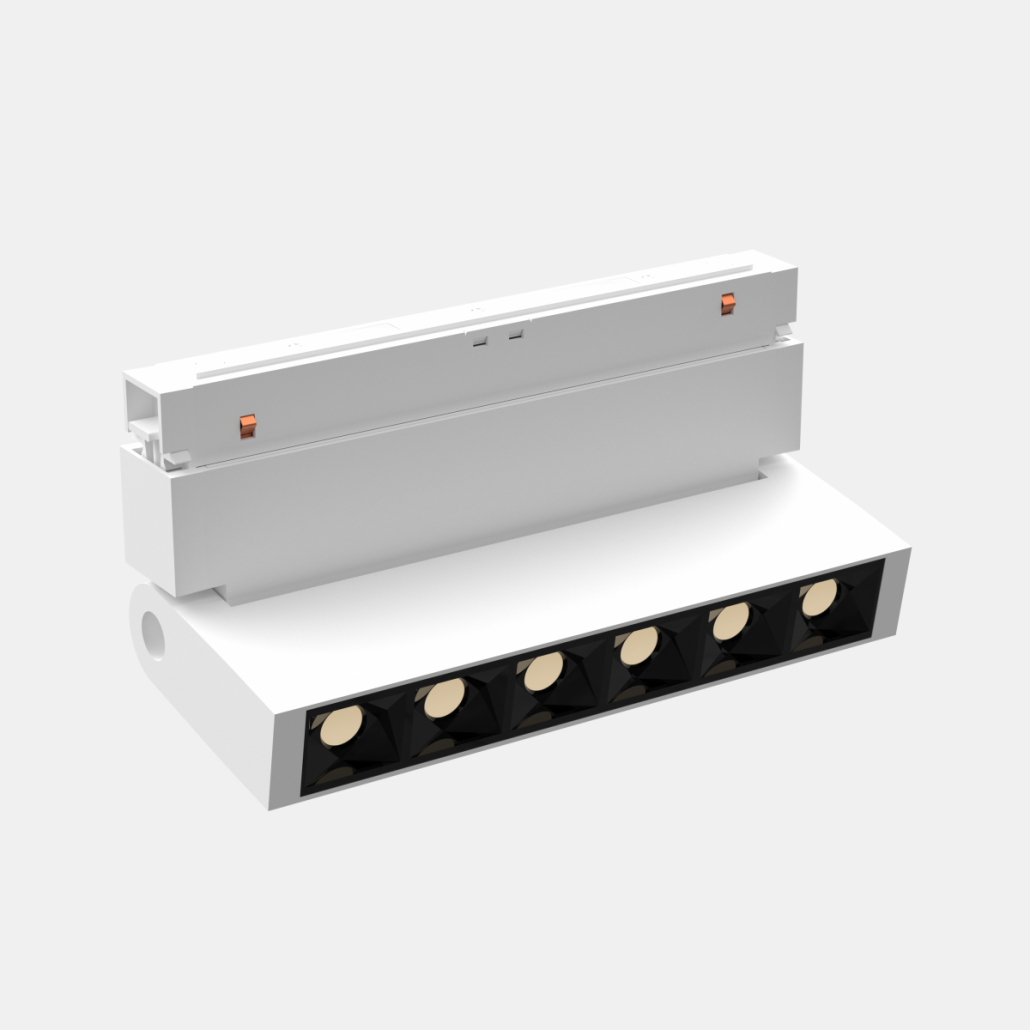

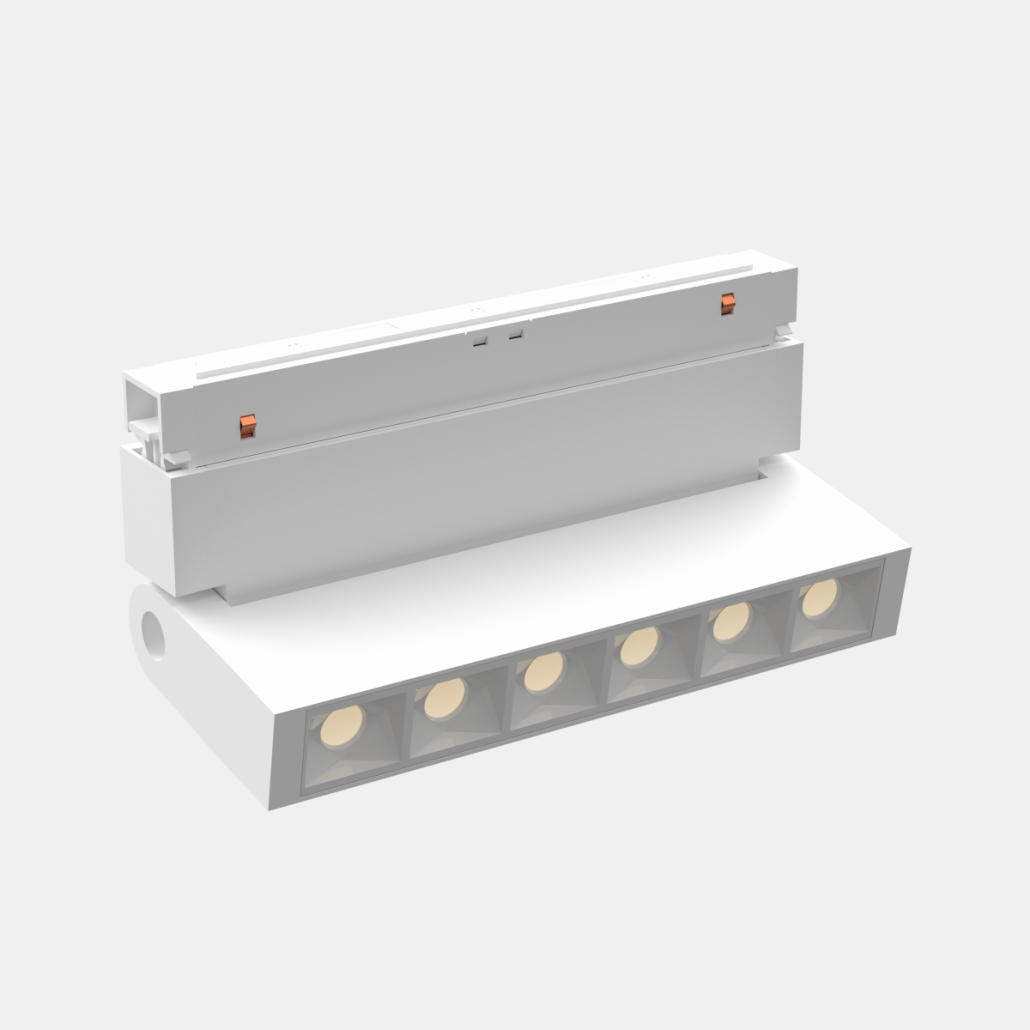

SMGS0612 Professional High CRI Magnetic Linear Light 6-12W

Product Number: SMGS0612

Quick Info:

CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI90+, CRI97+
Full Beam Angle: Single CCT: 15°/30°/45° Tunable white: 24°/36°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 80Lm/W
Protection: IP20
Warranty: 3 years

Send inquiry WhatsApp

Product Details

Description

The SMGS0612 6-12W professional magnetic linear grille is engineered for color-sensitive environments such as fine art galleries and high-end fashion boutiques. Achieving CRI>97, Rf≥92, and Rg≥99, it reproduces colors with museum-grade accuracy. Equipped with a 16KHz flicker-free driver and comprehensive DALI, Triac, and ZigBee protocol support, this 12W module ensures a comfortable visual experience and effortless integration into complex commercial smart lighting systems.

Specification

SMGS0612 Professional High CRI Magnetic Linear Light 6-12W
Product code	SMGS0612
Power	6W/12W
Voltage	24VDC, 48VDC
CCT	2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K

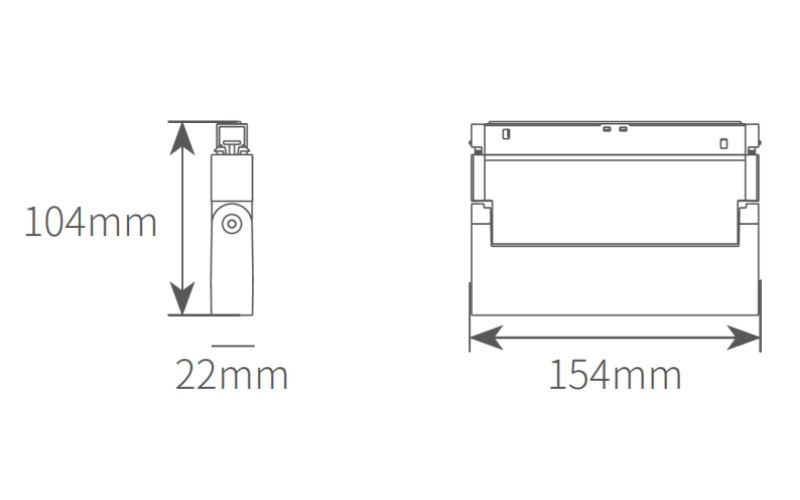

Size	L154W22104mm
Color tolerance	SDCM＜3
Beam angle	Single CCT: 15°/30°/45° Tunable white: 24°/36°
Power factor	PF>0.9
CRI	CRI90+, CRI97+
Dimmable	DALI, Triac, 0-10V, Bluetooth, Zigbee
Optics	Reflector
Color Accuracy	Rf≥92
Color Saturation	Rg=99
Lumen output	Lamp lumen 80lm/W
Materials	Die cast Aluminum
Installation	Track Mouted
Protection	IP20
Finish	White / Black (Customizable)
Warranty	3 years
