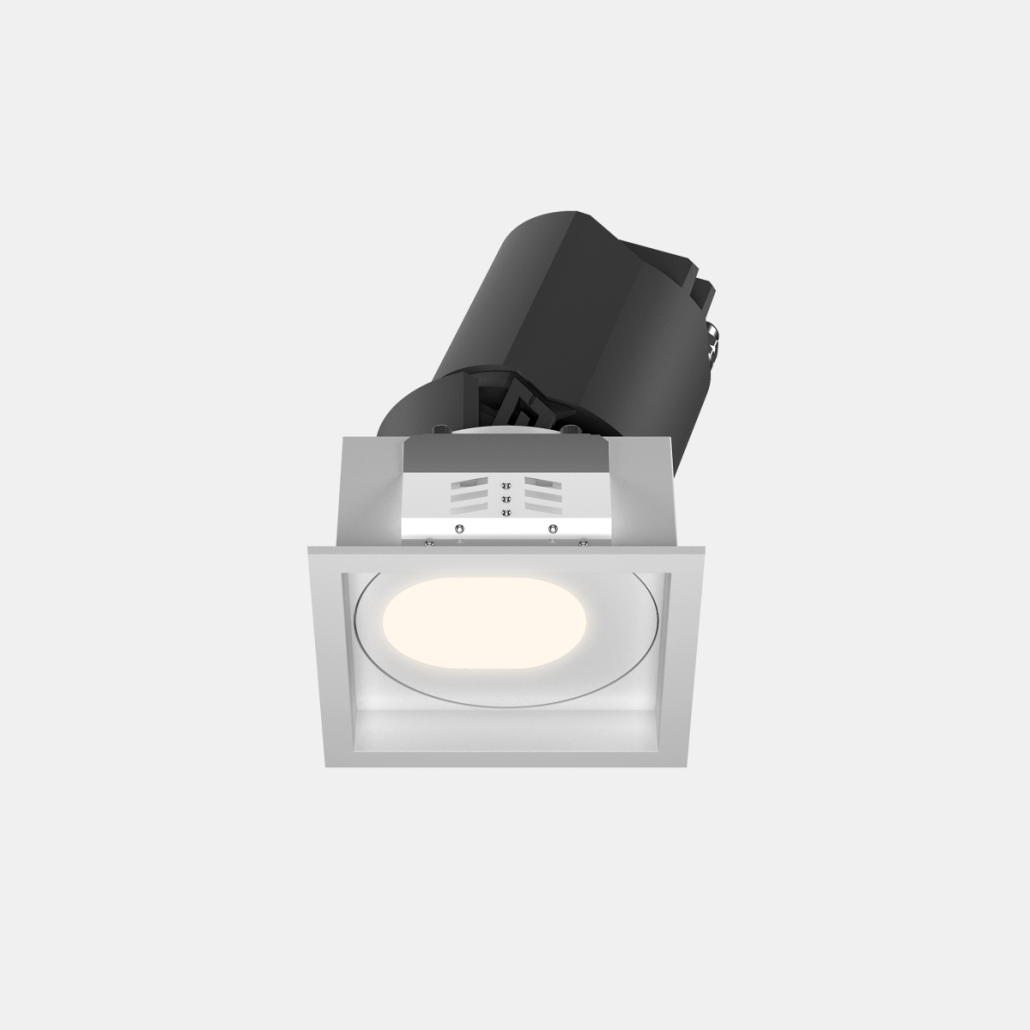

Square IP65 Trimmed Architectural Downlight 12-20W
Product Number: BDLS7512-D, BDLS7520-TR-D
Product Details
Description
The KWT Square IP65 Trimmed Commercial Series is engineered for high-density commercial lighting layouts. Covering 12W and 20W across two models (BDLS7512-D and BDLS7520-D), this commercial downlight uses a unified 85x85mm die-cast aluminum frame for quick, fault-tolerant installation. Its deep anti-glare design (UGR<11) ensures visual comfort in high-traffic retail environments, while the IP65 waterproof structure allows safe deployment in demanding wet zones. With modular onsite interchangeable 15/25/35/60-degree lenses and >90Lm/W efficacy, it significantly lowers installation labor, inventory costs, and long-term maintenance expenses.
Contact us for project pricing or OEM samples.
Specification
| Square IP65 Trimmed Architectural Downlight 12-20W | ||
| Product code | BDLS7512-D | BDLS7520-D |
| Power | 12W | 20W |
| Size | L85*W85*H91mm | L85*W85*H121mm |
| Cut out | 76*76mm | 76*76mm |
| Beam angle | 15°/25°/35°/60° | 15°/25°/35°/60° |
| Voltage | 220-240VAC | |
| Lumen output | Lamp lumen 100Lm/W | |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | |
| Dimmable | ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee | |
| Optics | Reflector / Lens | |
| LED brand | CITIZEN / CREE | |
| CRI | CRI90+, CRI97+ | |
| Color Saturation | Rg=99 | |
| SDCM | <3 | |
| Materials | Die cast Aluminum | |
| Installation | Recessed | |
| Protection | IP65 | |
| Finish | White / Black (Customizable) | |
| Warranty | 5 years | |

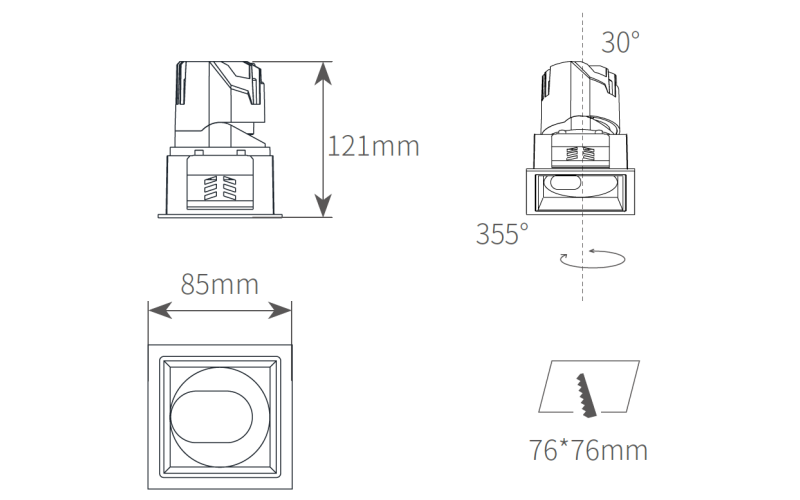

Size and drawing
Accessories
Datasheet
