Product Number: SMGS1224
Quick Info:
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90, CRI>97
Full Beam Angle: Single CCT: 15°/30°/45° Tunable white: 24°/36°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 80Lm/W
Protection: IP20
Warranty: 3 years

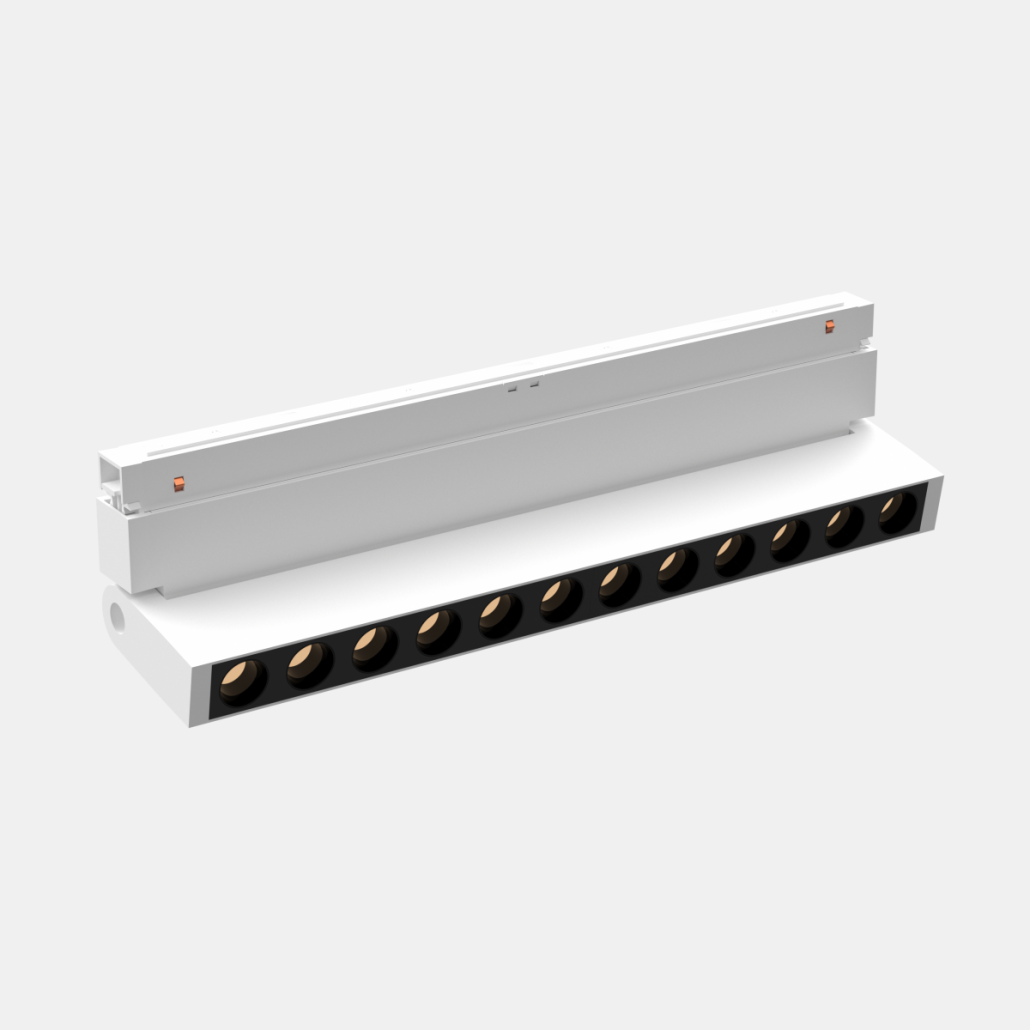

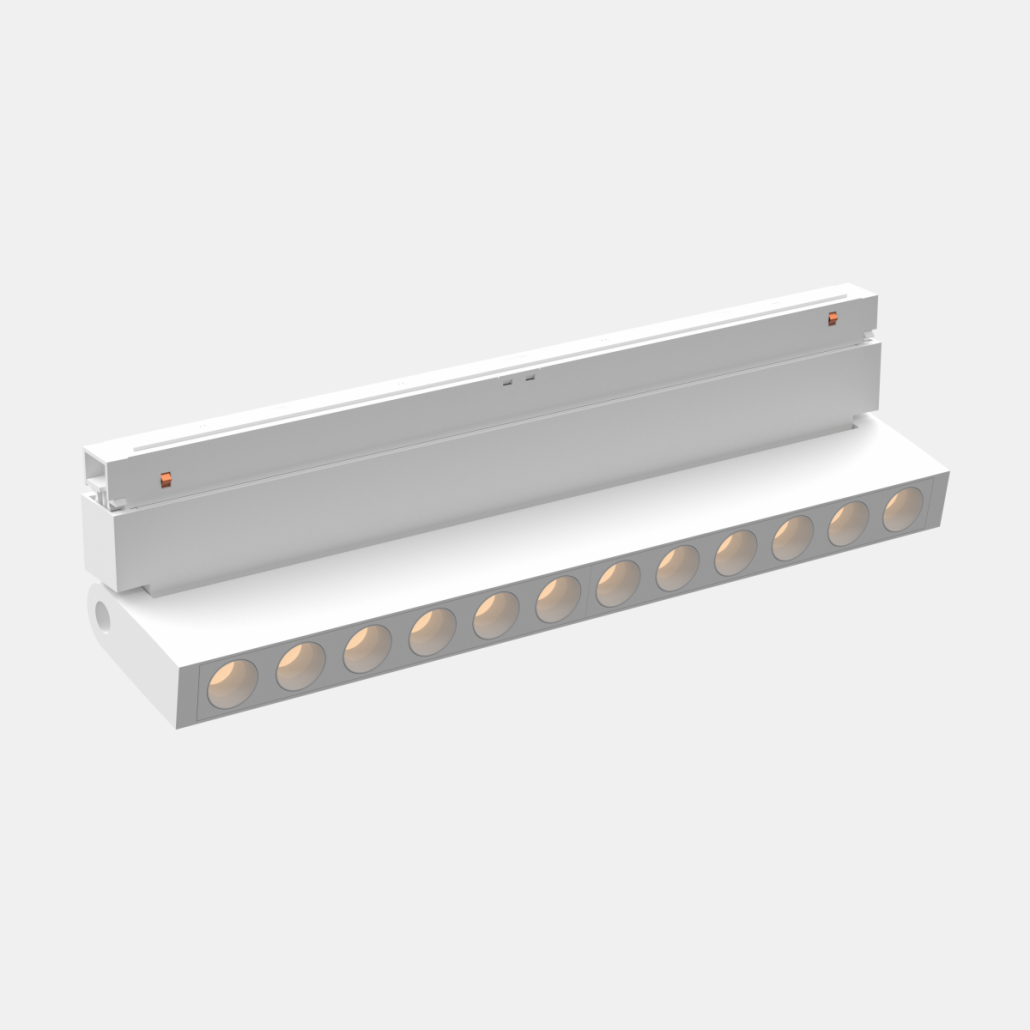

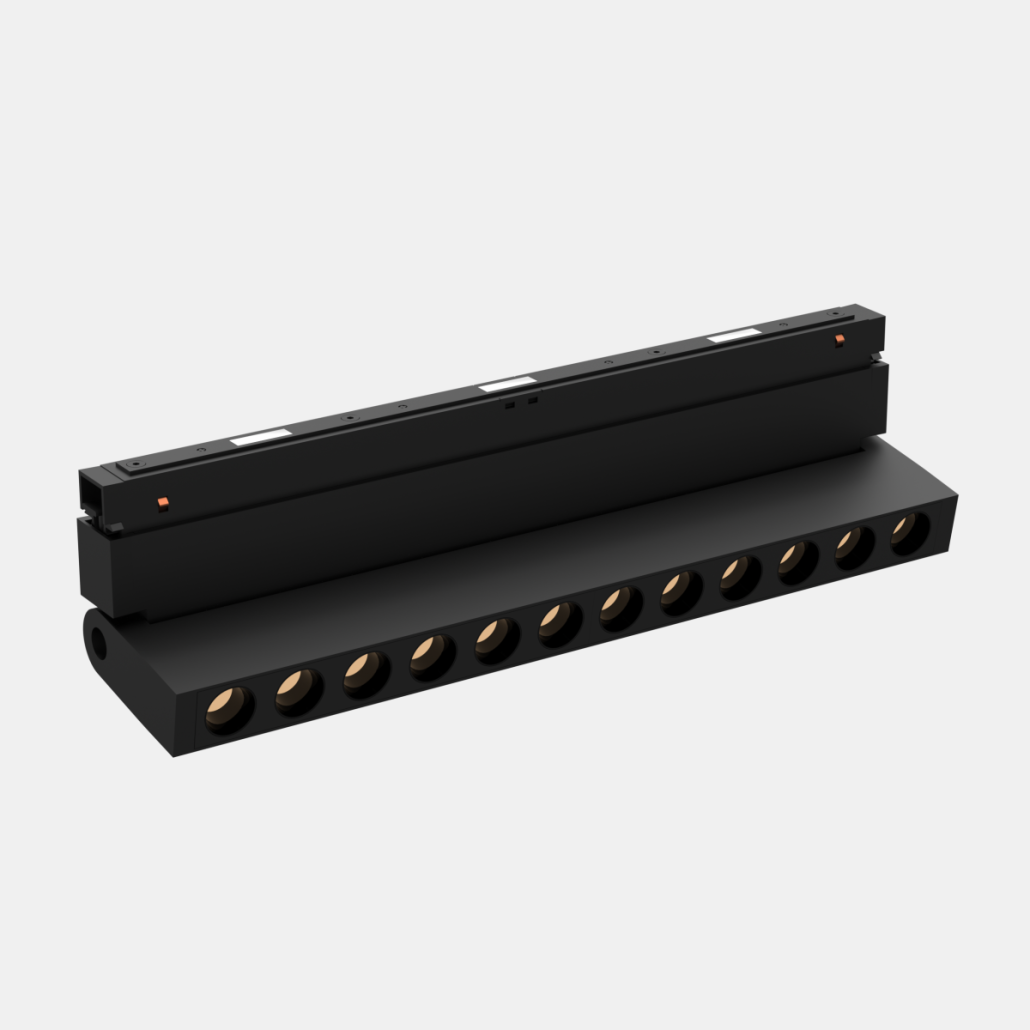

The SMGS1224 12-24W architectural magnetic grille track light is a specialized tool for art galleries and high-end museums. Its precision grille design delivers sharp cut-off edges to prevent light spillage onto adjacent artwork. Achieving a stellar CRI>97, Rf≥92, and Rg≥99, it guarantees flawless color reproduction for paintings and sculptures. Operating on a 24/48V low-voltage track system, this 24W module supports an 1800K to 6500K Tunable CCT range, allowing curators to perfectly match lighting temperatures to suit various exhibition themes.
| SMGS1224 High CRI Architectural Grille Track Light 12-24W | |
| Product code | SMGS1224 |
| Power | 12W/24W |
| Voltage | 24VDC, 48VDC |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |

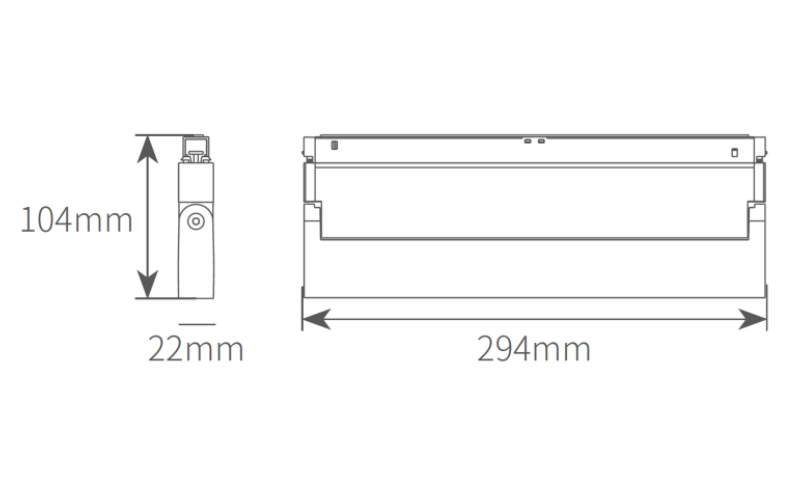

| Size | L294*W22*H104mm |
| Color tolerance | SDCM＜3 |
| Beam angle | Single CCT: 15°/30°/45°, Tunable white: 24°/36° |
| Power factor | PF>0.9 |
| CRI | CRI90+, CRI97+ |
| Dimmable | ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee |
| Optics | Reflector |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen 80lm/W |
| Materials | Die cast Aluminum |
| Installation | Track Mouted |
| Protection | IP20 |
| Finish | White / Black (Customizable) |
| Warranty | 3 years |
