The Outdoor Square Wall Light That Lights Up and Down.
These outdoor square wall lights deliver a bold dual beam that casts clean arcs of light both upward and downward along any exterior wall surface. Engineered for modern facades, villa entrances, hotel exteriors and commercial building walls, the up down LED square wall lights make a strong architectural statement while providing practical path and accent illumination.
Built from ACD12# die-cast aluminum with powder-coated sand black, matte white or silver finish, each square wall sconce is IP65 rated for full outdoor weatherproof use. The tempered glass lens delivers even, glare-controlled light spread across 18°, 22°, 38° and 60° beam angle options to suit tight accent or wide ambient lighting needs.
Powered by a CREE 1304 / 1512 / 1820 light source, these modern outdoor wall light fixtures operate at 10W to 40W with lumen outputs from 2×450LM to 2×1800LM. Available in 2200K to 6500K colour temperatures and fully compatible with Triac, PWM, 1–10V, DALI and DMX512 dimming — ready for residential, hospitality and commercial control systems.
Applacation

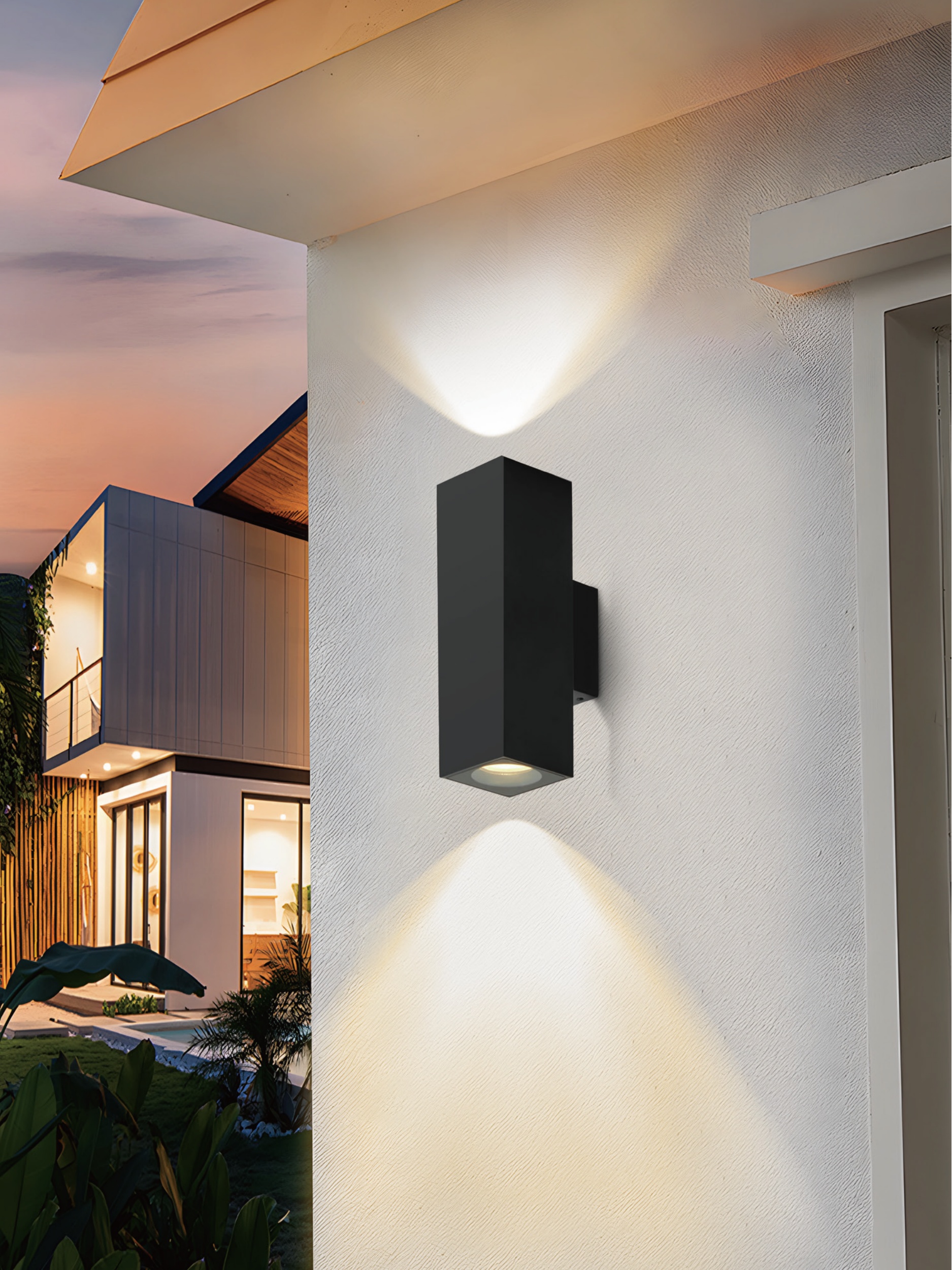

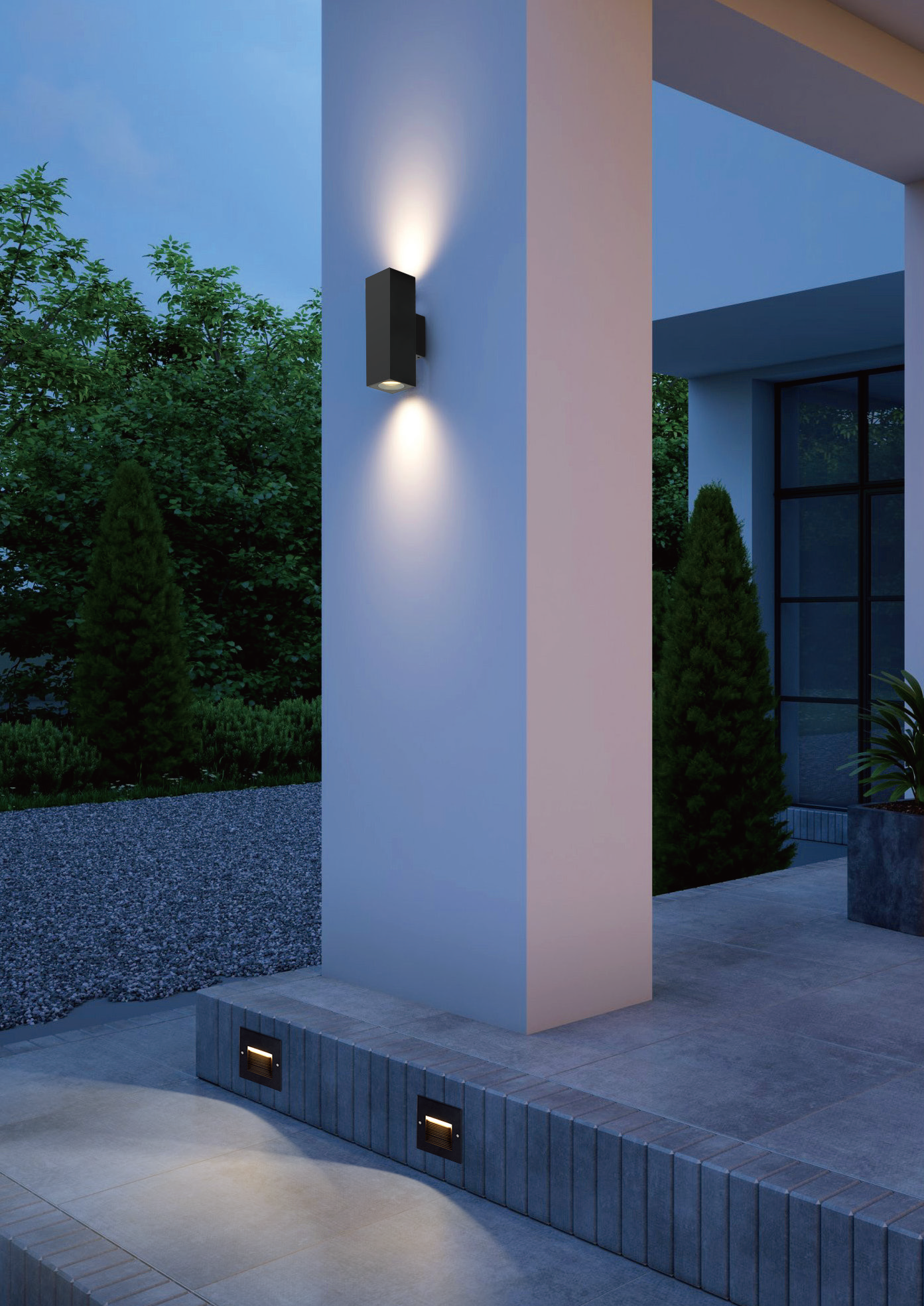

The outdoor square wall sconce is designed for architects, landscape designers and property owners who need reliable, design-led exterior wall lighting. Its symmetrical up and down beam makes it equally effective as a facade accent light, an entrance marker or a pathway wall mount.
Common installation scenarios include:
- Hotel and resort exterior corridors and feature walls
- Villa and private residence entrance gates and garage walls
- Commercial building facades and lobby entrances
- Outdoor dining terraces, poolside walls and covered walkways
- Retail storefront exterior walls and signage surrounds
- Apartment building common areas and car park ramp walls

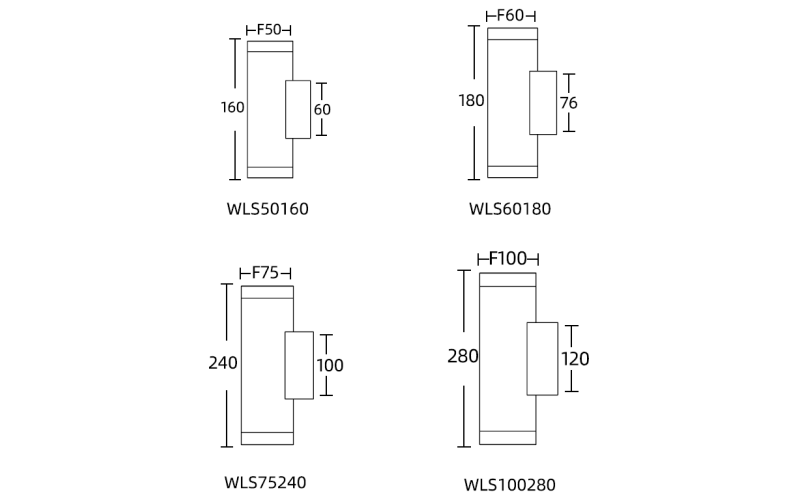

Four size options — WLS50160, WLS60180, WLS75240 and WLS100280 — allow precise scale matching to single-storey entrance pillars or multi-storey building facades. Pair with DMX512 control for dynamic colour lighting effects on hospitality and event venue exteriors.

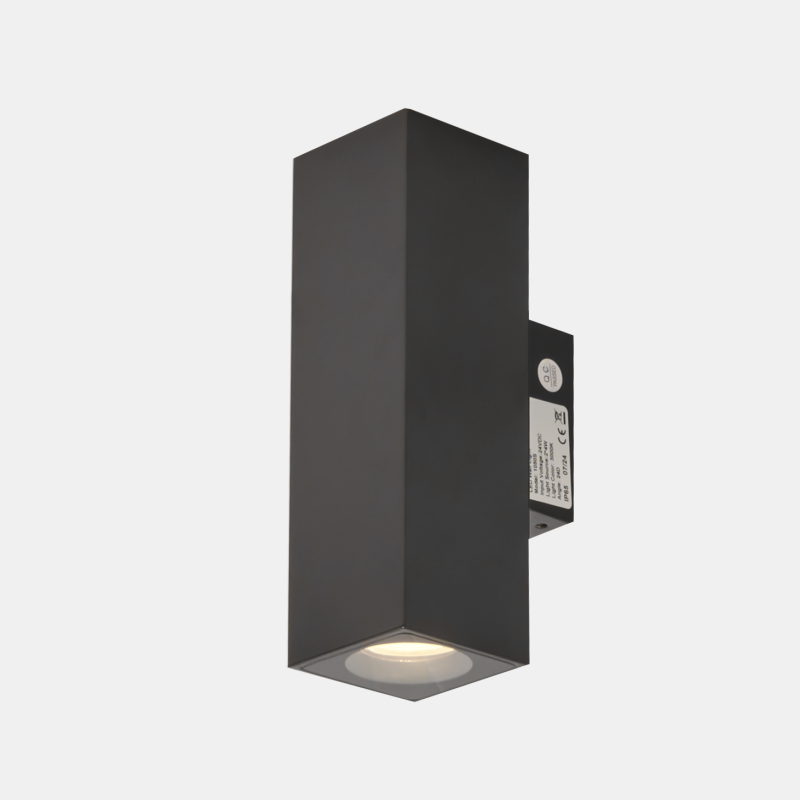

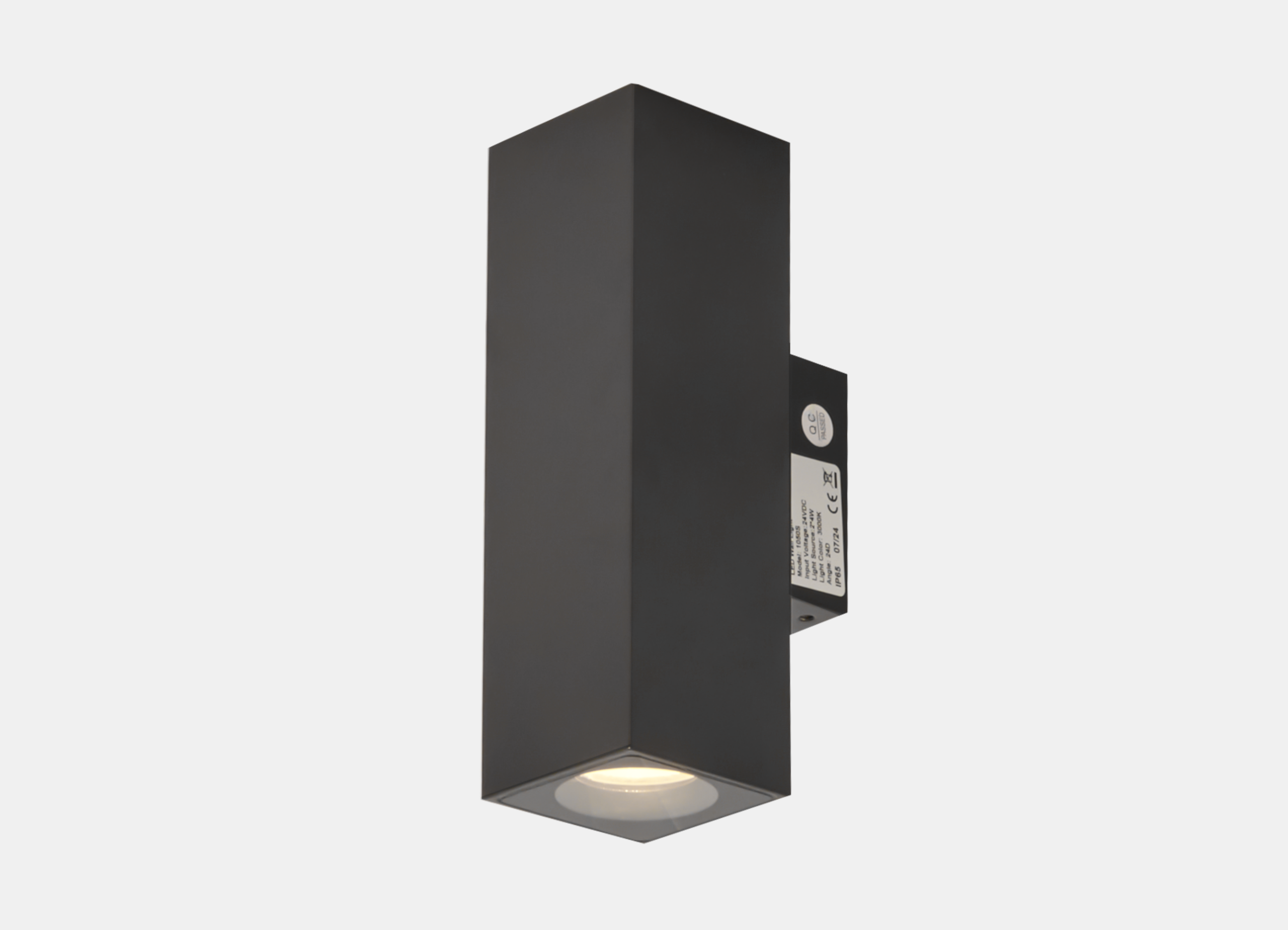

Product Details
- Dual Up Down Beam Simultaneous upward and downward light output covers both facade surfaces and ground level in one fixture.
- Four Beam Angles Choose 18°, 22°, 38° or 60° to match tight architectural accent or wider ambient wall wash requirements.
- IP65 Weatherproof Rating Dustproof and rain resistant for permanent outdoor wall mount installation in exposed locations.
- CREE LED Light Source High-output CREE 1304, 1512 and 1820 chips deliver 2×450LM to 2×1800LM with consistent colour over 50,000+ hours.
- Four Size Options 50×160mm up to 100×280mm body sizes to suit entrance pillars, feature walls and multi-storey building facades.
- Full Dimming Protocol Support Triac, PWM, 1–10V, DALI and DMX512 all supported from a single fixture without additional adapters.
- Wide Colour Temperature Range 2200K warm white to 6500K daylight available for residential warmth or commercial clarity.
- Three Finish Options Sand black, matte white and silver powder-coat to complement or contrast any exterior facade material.
Specification
| Product | Model | Light source | Wattage | Beam Angle | Input voltage | Color Temperature | Luminous Flux | CRI | IP | Dimming |
![]() | WLS50160 | 2×4W | 10W | 18°/22°/30°/60° | 12/24VDC | 2200-6500K | 2x408Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 |
| WLS50160 | 2×4W | 8.2W | 18°/22°/30°/60° | 220-240VAC | 2200-6500K | 2x408Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 | |
| WLS50160 | 2×4W | 8.2W | 18°/22°/30°/60° | 220-240VAC Triac | 2200-6500K | 2x408Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 | |
![]() | WSL60180 | 2×8W | 18W | 18°/22°/30°/60° | 12/24VDC | 2200-6500K | 2x837Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 |
| WSL60180 | 2×8W | 16W | 18°/22°/30°/60° | 220-240VAC | 2200-6500K | 2x837Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 | |
| WSL60180 | 2×8W | 16W | 18°/22°/30°/60° | 220-240VAC Triac | 2200-6500K | 2x837Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 | |
![]() | WLS75240 | 2×13W | 25W | 18°/22°/30°/60° | 12/24VDC | 2200-6500K | 2x1082Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 |
| WLS75240 | 2×13W | 25W | 18°/22°/30°/60° | 220-240VAC | 2200-6500K | 2x1082Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 | |
| WLS75240 | 2×13W | 25W | 18°/22°/30°/60° | 220-240VAC Triac | 2200-6500K | 2x1082Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 | |
![]() | WLS100280 | 2×18W | 38W | 18°/22°/30°/60° | 12/24VDC | 2200-6500K | 2x1788Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 |
| WLS100280 | 2×18W | 38W | 18°/22°/30°/60° | 220-240VAC | 2200-6500K | 2x1788Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 | |
| WLS100280 | 2×18W | 38W | 18°/22°/30°/60° | 220-240VAC Triac | 2200-6500K | 2x1788Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 |
