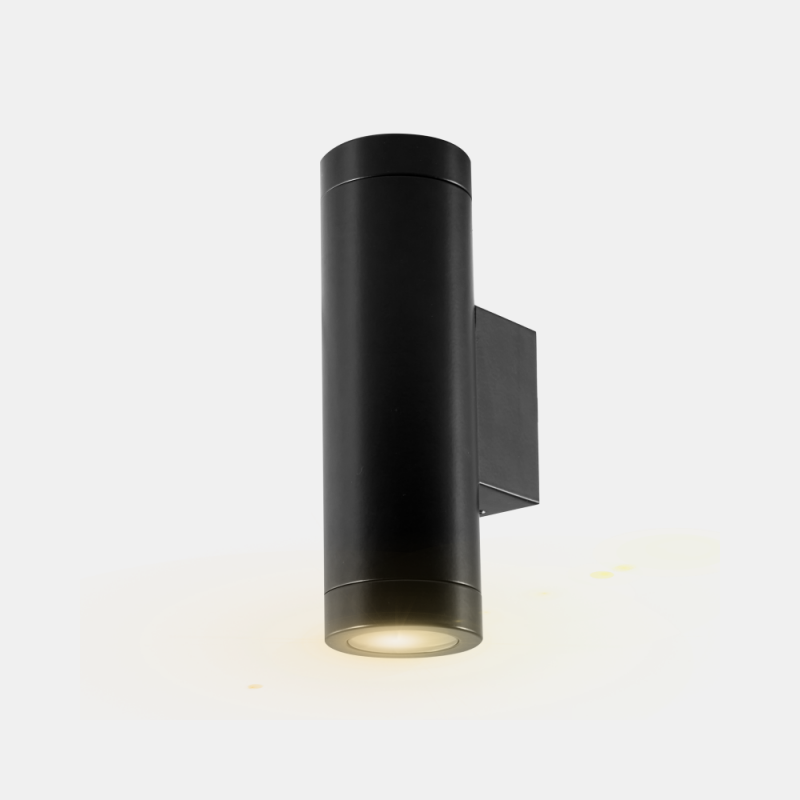

Outdoor Cylinder Wall Light

Product Details
Dual Up Down Beam Simultaneous upward and downward output covers both facade surface and ground level from one fixture.
Four Beam Angles Select 18°, 22°, 30° or 60° to match tight accent or wide ambient wall wash requirements.
IP65 Weatherproof Fully dustproof and rain resistant for permanent outdoor wall mount installation in exposed locations.
CREE Double Head LED Delivers 2×408LM to 2×1919LM output with stable colour rendering over 50,000+ operating hours.

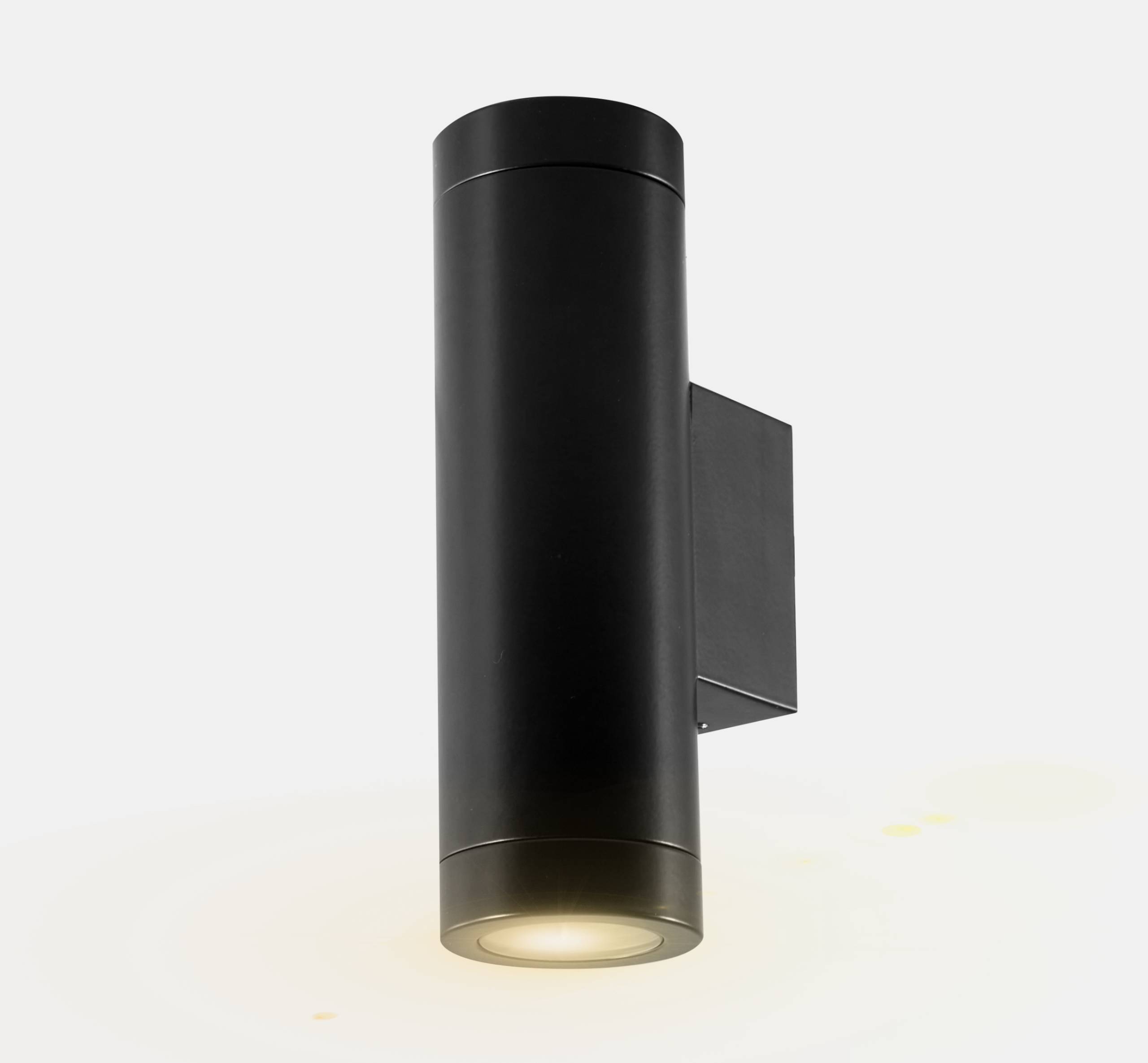

Four Size Options WL50160, WL60180, WL75240 and WL100280 scale from entrance pillars to multi-storey building facades.
Full Dimming Protocol Support Triac, PWM, 1–10V, DALI and DMX512 all supported without additional adapters.
2200K to 6500K Colour Range From residential warm white to commercial daylight in one product line.
Two Finish Options Sand black and sand white powder-coat to complement any exterior facade material.

Send inquiry WHATSAPP

Outdoor Cylinder Wall Light

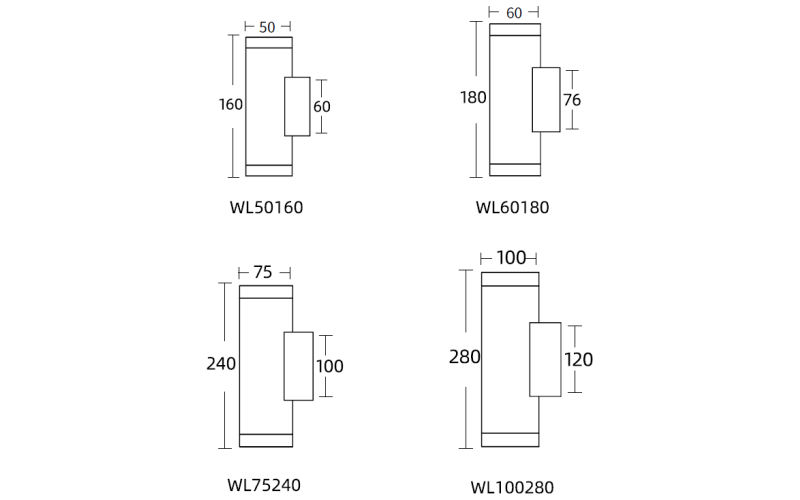

WL50160 wall mount square wall light, line drawing with dimensions of 50mm L x 50mm W, and 160mm H.

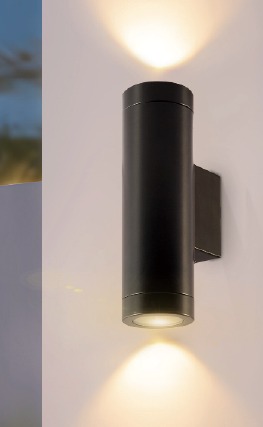

Exterior up and down lights mounted on modern building facade showing dual beam wall wash effect

Architectural Cylinder LED Wall Sconce for Exterior Walls

This outdoor cylinder wall light delivers a clean, symmetrical dual beam that projects both upward and downward along any exterior wall surface. Engineered for modern facades, hotel entrances and commercial building exteriors, it combines architectural restraint with high-output CREE LED performance.

Built from 12# die-cast aluminum with a powder-coated sand black or sand white finish, this exterior up and down light is IP65 rated for permanent outdoor installation. Tempered 6.0mm glass protects the optic while delivering even, controlled light output across four selectable beam angles: 18°, 22°, 30° and 60°.

Available in 4 body sizes from WL50160 to WL100280, with CREE double head LED output from 2×408LM at 8.2W up to 2×1919LM at 38W. Colour temperature covers 2200K warm white to 6500K daylight. Compatible with Triac, PWM, 1–10V, DALI and DMX512 dimming protocols.

Where to Use Outdoor Cylinder Wall Lights

Commercial Exterior Wall Lighting for Hotels and Offices

These commercial wall lights exterior suit hotel facades, office building entrances, retail storefronts and campus walkway walls. The slim cylindrical body blends into architectural surfaces without visual clutter, while the up down beam creates layered facade illumination that works day and night. Ideal as commercial exterior wall light fixtures alongside entrance canopies and covered corridors.

Residential Exterior Wall Sconce for Villas and Gateways

As an exterior wall sconce for private residences, this cylinder light suits garage walls, garden boundary walls, villa entrance pillars and terrace posts. The warm 2200K to 3000K colour range creates comfortable, welcoming outdoor ambiance, while IP65 protection handles rain, dust and coastal humidity without maintenance.

Up Down Exterior Wall Sconce for Hospitality and Landscape

For outdoor dining areas, poolside walls, resort corridors and landscape feature walls, this up down exterior wall sconce delivers accent lighting with visual depth. Mount at 2.5m to 3m height for optimal beam overlap. Pair with DALI control for scene-based dimming across multiple zones. Use DMX512 for dynamic colour effects on event venue exteriors.

IP65 outdoor cylinder wall light warm white 2700K up down beam on residential villa entrance wall

Product Details

Dual Up Down Beam Simultaneous upward and downward output covers both facade surface and ground level from one fixture.
Four Beam Angles Select 18°, 22°, 30° or 60° to match tight accent or wide ambient wall wash requirements.
IP65 Weatherproof Fully dustproof and rain resistant for permanent outdoor wall mount installation in exposed locations.
CREE Double Head LED Delivers 2×408LM to 2×1919LM output with stable colour rendering over 50,000+ operating hours.
Four Size Options WL50160, WL60180, WL75240 and WL100280 scale from entrance pillars to multi-storey building facades.
Full Dimming Protocol Support Triac, PWM, 1–10V, DALI and DMX512 all supported without additional adapters.
2200K to 6500K Colour Range From residential warm white to commercial daylight in one product line.
Two Finish Options Sand black and sand white powder-coat to complement any exterior facade material.

Specification

Product	Model	Light source	Wattage	Beam Angle	Input voltage	Color Temperature	Luminous Flux	CRI	IP	Dimming
	WL50160	2×4W	10W	18°/22°/30°/60°	12/24VDC	2200-6500K	2x408Lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
	WL50160	2×4W	8.2W	18°/22°/30°/60°	220-240VAC	2200-6500K	2x408Lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
	WL50160	2×4W	8.2W	18°/22°/30°/60°	220-240VAC Triac	2200-6500K	2x408Lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
	WL60180	2×8W	18W	18°/22°/30°/60°	12/24VDC	2200-6500K	2x837Lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
	WL60180	2×8W	16W	18°/22°/30°/60°	220-240VAC	2200-6500K	2x837Lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
	WL60180	2×8W	16W	18°/22°/30°/60°	220-240VAC Triac	2200-6500K	2x837Lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
	WL75240	2×13W	25W	18°/22°/30°/60°	12/24VDC	2200-6500K	2x1082Lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
	WL75240	2×13W	25W	18°/22°/30°/60°	220-240VAC	2200-6500K	2x1082Lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
	WL75240	2×13W	25W	18°/22°/30°/60°	220-240VAC Triac	2200-6500K	2x1082Lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
	WL100280	2×18W	38W	18°/22°/30°/60°	12/24VDC	2200-6500K	2x1788Lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
	WL100280	2×18W	36W	18°/22°/30°/60°	220-240VAC	2200-6500K	2x1788Lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
	WL100280	2×18W	36W	18°/22°/30°/60°	220-240VAC Triac	2200-6500K	2x1788Lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
