The LED Window Frame Light That Frames Every Detail in Light
The LED window frame light outlines windows, doorframes, arches and architectural recesses with a clean, continuous arc of light. Its wide 3×170° beam wraps evenly around window surrounds — no hotspots, no shadowed gaps — creating a bold luminous border that defines your building after dark.
Available in 2.5W to 10W, 127Lm to 660Lm. Input voltage: 12/24VDC or 220~240VAC.
Built from 12# die-cast aluminum with IP65 waterproof protection, this window frame light operates from −20°C to 40°C for year-round outdoor use. Light source: OSRAM or CREE. What color temperature should be selected for the LED lights around window frame?
| Color Temperature | Atmosphere |
|---|---|
| 2200K to 3000K | Warm white, residential and hospitality |
| 4000K to 6500K | Neutral to daylight, commercial facades |
| R / G / B / Amber | Colour accent and feature lighting |
Dimming options:
- Triac / PWM / 1–10V — standard phase and voltage dimming
- DALI — addressable, zone-by-zone control for commercial projects
- DMX512 RGB 3-in-1 / RGBW 4-in-1 — full colour-changing facade effects
Applacation

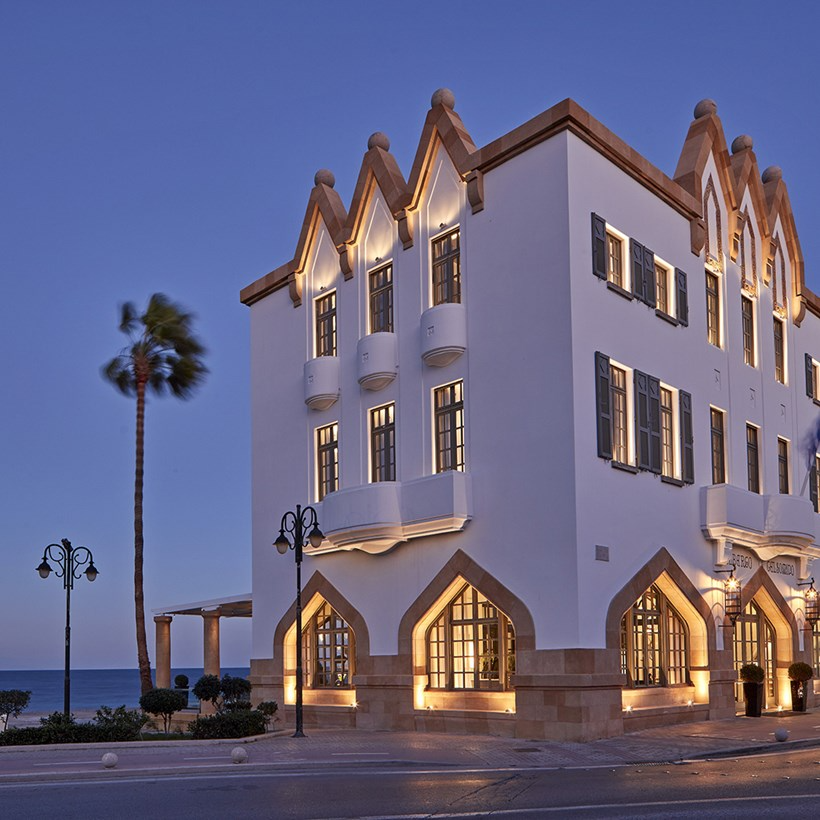

The LED window frame light accentuates facades, arched windows and building entrances with a precise arc of light. Its 3×170° beam and IP65 rating suit hotel exteriors, villa archways, retail storefronts, outdoor corridors and poolside walls — anywhere facade accent lighting is required.

Product Details
- 3×170° Wide-Angle Beam Wraps continuously around window surrounds and arched frames with zero hotspots and no shadowed gaps.
- IP65 Weatherproof Body Die-cast aluminum shell built to withstand rain, dust and coastal humidity without surface degradation.
- OSRAM / CREE Light Source Delivers stable, high-efficacy output across 50,000+ hours with no colour shift over time.
- Full Spectrum Colour Options From 2200K warm amber to 6500K daylight, plus dedicated R/G/B and Amber channels for accent and mood lighting.
- RGB and RGBW DMX512 Versions Enable dynamic colour-changing facade displays fully controllable via any DMX lighting console.
- Five Dimming Protocols in One Triac, PWM, 1–10V, DALI and DMX512 supported, so it connects to any control system without an adapter.
- Dual Voltage Compatibility Runs on 12/24VDC or 220~240VAC straight out of the box, no additional converter needed for most global markets.
- Three Finish Options Sand black, matte white and silver to match or contrast any facade material.
Specification
| Product | Model | Light source | Wattage | Beam Angle | Input voltage | Color Temperature | Luminous Flux | CRI | IP | Dimming |

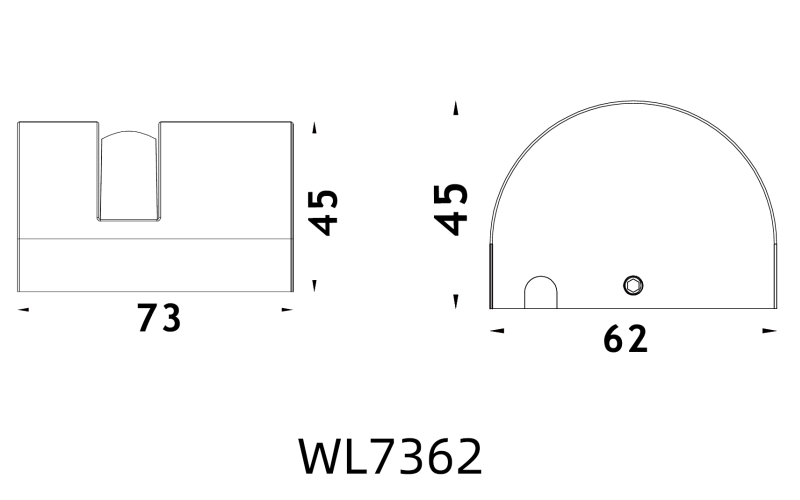

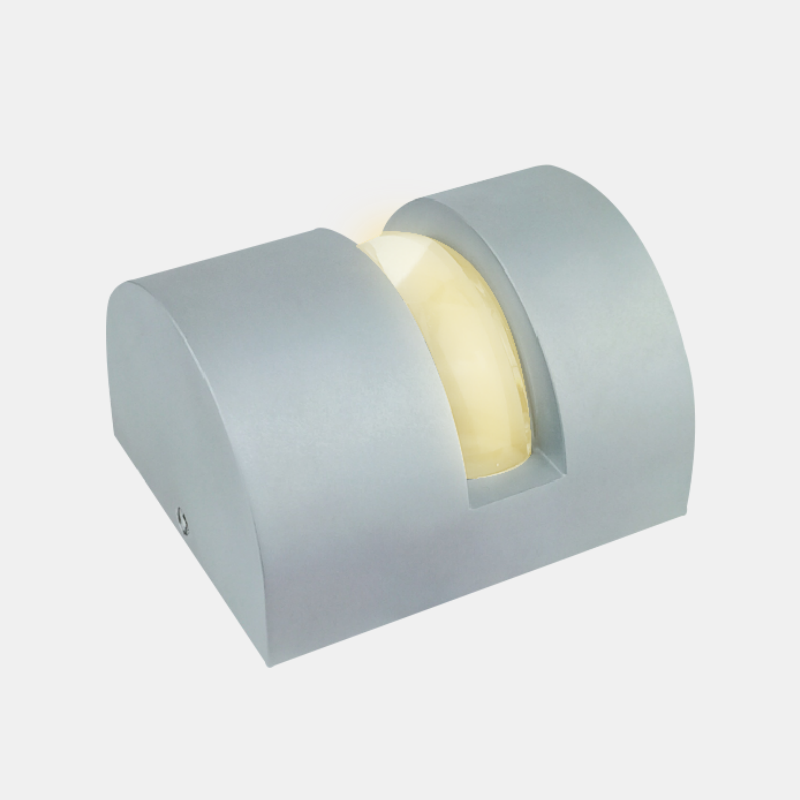

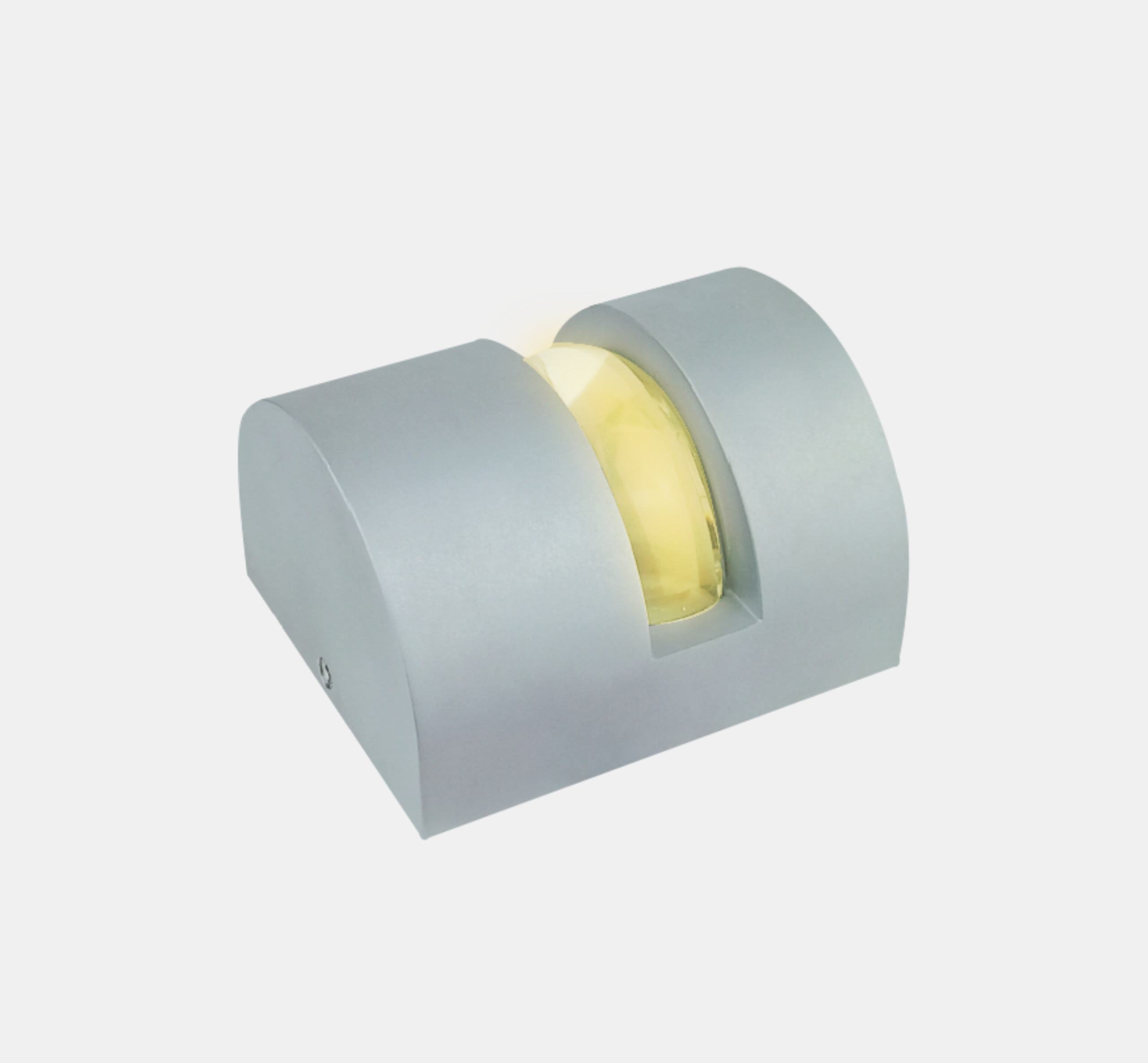

![]() | WL7362 | 1×3W | 3W | 3×170° | 12/24VDC | 2200-6500K R/G/B | 171Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 |
| WL7362 | 1×3W | 3W | 3×170° | 220-240VAC | 2200-6500K R/G/B | 171Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 | |
| WL7362 | 3×2W | 6W | 3×170° | 12/24VDC | 2200-6500K R/G/B | 312Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 | |
| WL7362 | 3×2W | 6W | 3×170° | 220-240VAC | 2200-6500K R/G/B | 312Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 | |

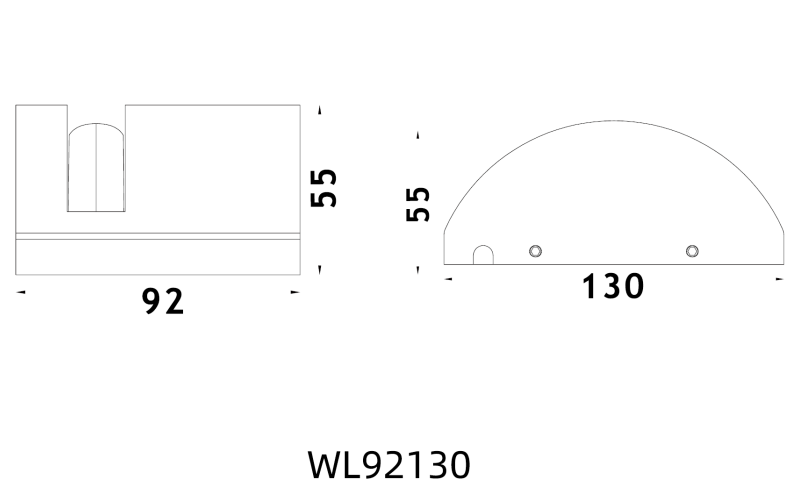

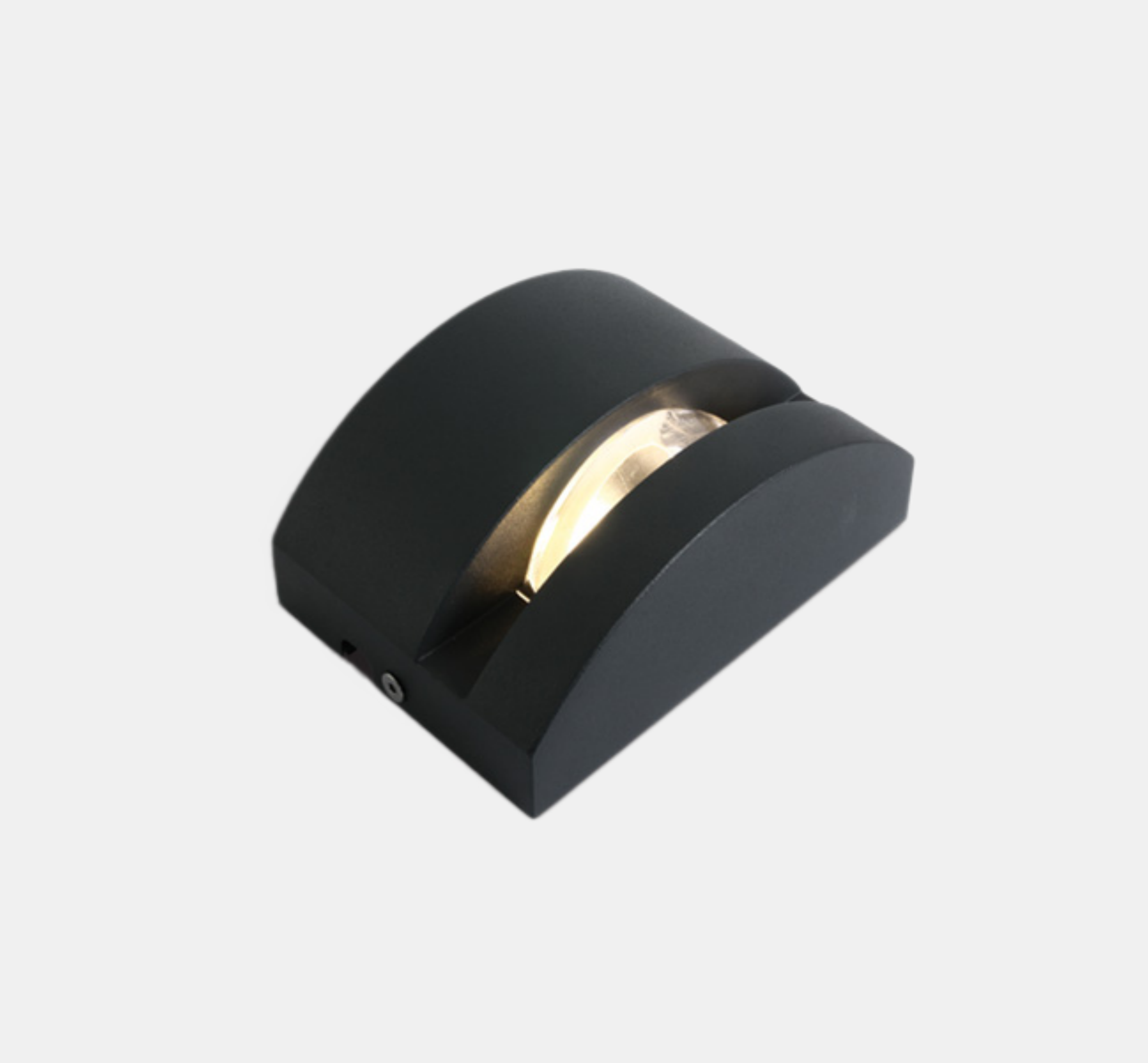

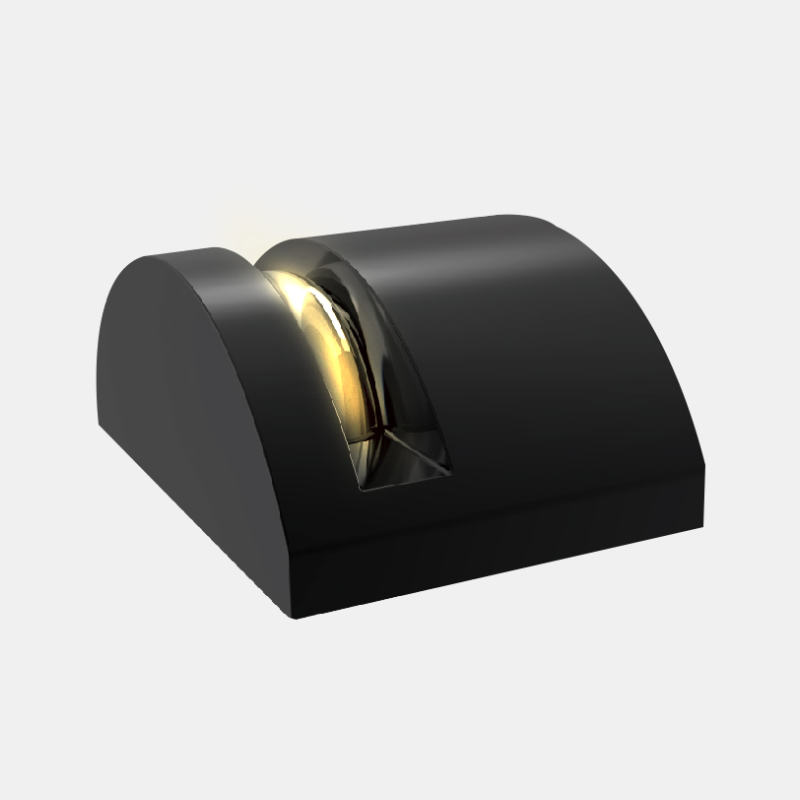

![]() | WL92130 | 6×2W | 12W | 3×170° | 12/24VDC | 2200-6500K R/G/B | 660Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 |
| WL92130 | 6×2W | 12W | 3×170° | 220-240VAC | 2200-6500K R/G/B | 660Lm | Ra>80 | IP67 | Triac/PWM/1-10V/Dali/DMX512 |
