Product Details
Description
DLG15535 – 35W Commercial Gimbal Recessed Downlight with 165mm Cutout
The DLG15535 strikes the perfect balance between substantial illumination power and architectural elegance. Designed with a 165mm cutout diameter and a 140mm ceiling depth, this 35W gimbal downlight delivers impressive brightness while maintaining a refined visual presence in modern commercial interiors, such as upscale retail showrooms, corporate office corridors, and high-end hospitality venues.
Precision Lighting with Exceptional Color Fidelity
Boasting a high Color Rendering Index of CRI>90, this downlight ensures that merchandising displays and interior finishes are reproduced with unmatched color accuracy. The versatile optical system provides adjustable beam angles of 15°, 24°, 38°, and 45°, empowering lighting designers to shape the atmosphere with sharp accent lighting or smooth, diffuse glow suitable for various spatial zones.
Advanced Dimming & Smart Control Compatibility
Engineered for seamless integration into advanced smart home and commercial control systems, the DLG15535 offers extensive dimming options. It fully supports TRIAC, 0-10V, DALI, Bluetooth, Zigbee, and PLC protocols, allowing for effortless adjustment of light levels to match the desired mood or operational requirements.
Refined Aesthetics & Robust Engineering
Available in classic White or sleek Black finishes, this recessed gimbal fixture creates a seamless, uncluttered ceiling line. The flicker-free, high-quality driver ensures visual comfort and reduced eye strain, while its reliable heat dissipation structure guarantees long-lasting, stable performance in demanding commercial environments.
Specification
| DLG15535 Commercial Precision Gimbal Recessed Downlight 35W | |
| Product code | DLG15535 |
| Power | 35W |
| Voltage | AC220-240V |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |
| Cut-out | D155mm |

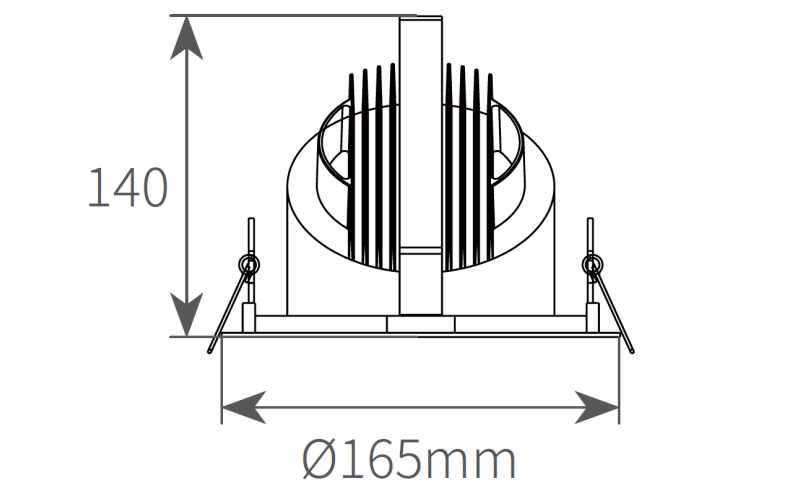

| Size | D165mm x H140mm |
| Color tolerance | SDCM<3 |
| Beam angle | 15°/24°/38°/45° |
| CRI | CRI90+ |
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |
| Optics | Reflector |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen 110lm/W |
| Materials | Die cast aluminum |
| Installation | Recessed Mounted |
| Protection | IP20 |
| Finish | White/Black |
| Warranty | 3 years |
