Product Number: BLD0510
Quick Info:
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90
Full Beam Angle: 15°/30°/45°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 100Lm/W
Protection: IP20
Warranty: 3 years

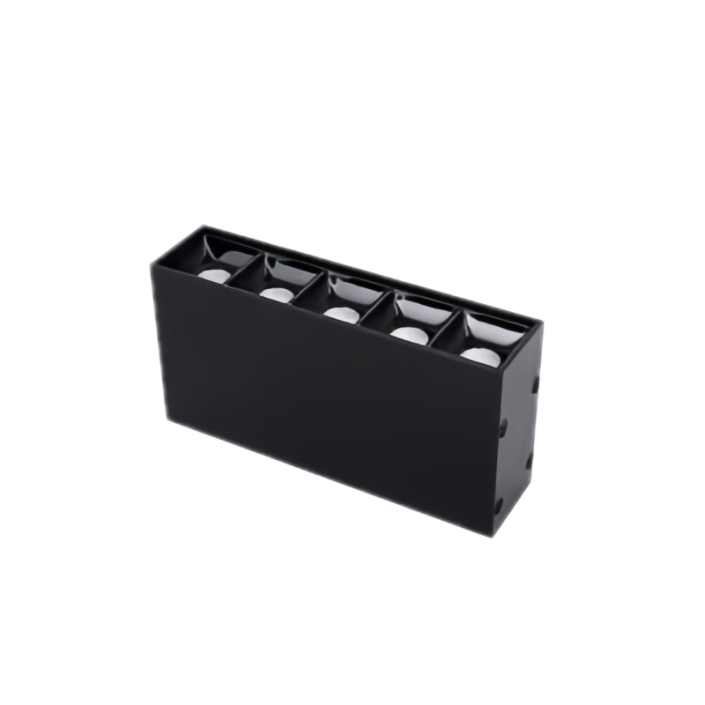

The BLD0510 10W compact linear grille light is expertly crafted from ADC12 die-cast aluminum, ensuring robust durability and efficient heat dissipation. This surface-mounted fixture is ideal for highlight displays in jewelry shops or small art galleries. With its precise 15° to 60° multi-beam optics and CRI≥90, it delivers sharp, vivid spotlighting where it matters most, all while maintaining a sleek, minimalist ceiling profile.
| BLD0510 Architectural Linear Die-cast Aluminum Surface Grille 10W | |
| Product code | BLD0510 |
| Power | 10W |
| Voltage | AC220-240V |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |
| Cut-out | – |

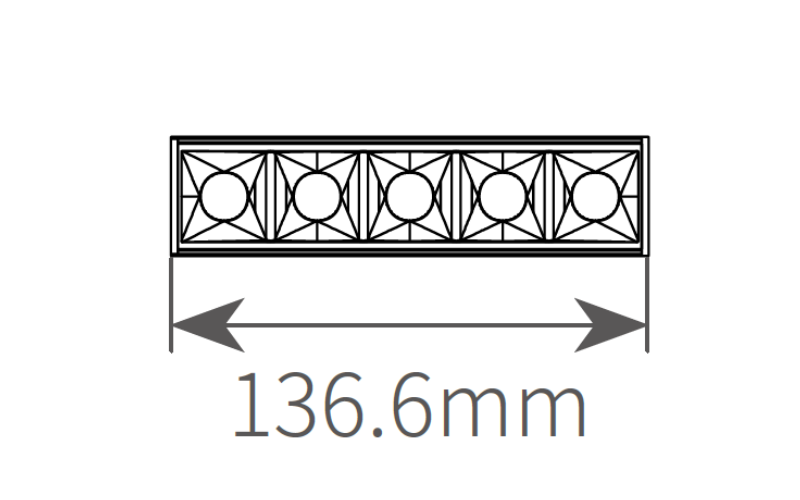

| Size | L136.6mm |
| Color tolerance | SDCM＜3 |
| Beam angle | 15°/30°/45° |
| CRI | CRI90+ |
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |
| Optics | Reflector |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen 100lm/W |
| Materials | Die cast aluminum |
| Installation | Surface Mounted |
| Protection | IP20 |
| Finish | White/Black |
| Warranty | 3 years |
