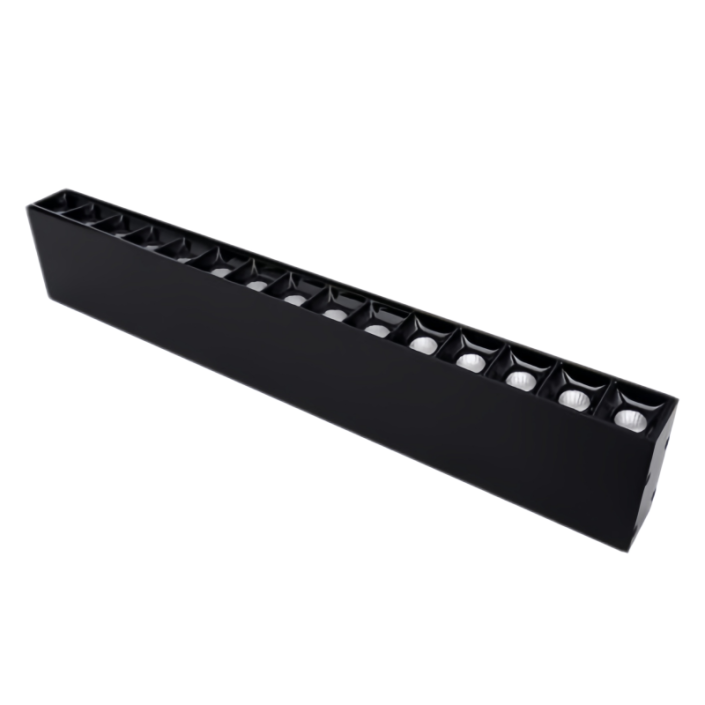

BLD1530 Commercial Linear Anti-glare Ceiling Grille Light 30W


Product Number:   BLD1530


Quick Info:

CCT:                           2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI:                            CRI>90
Full Beam Angle:     15°/30°/45°
Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux:        100Lm/W
Protection:                IP20
Warranty:                   3 years

Product Details

Description

The BLD1530 30W Commercial Linear Anti-glare Ceiling Grille Light is a high-output powerhouse built for large exhibition halls and commercial supermarkets. Its robust construction withstands daily intensive use, while the advanced anti-glare lens ensures excellent visual comfort even under high brightness. This heavy-duty grille light delivers brilliant, uniform coverage across expansive areas, making it the ultimate reliable choice for demanding B2B commercial projects.

Specification

BLD1530 Commercial Linear Anti-glare Ceiling Grille Light 30W
Product codeBLD1530
Power30W
Voltage220-240VAC
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
Cut-out
SizeL401.7mm
Color toleranceSDCM3
Beam angle15°/30°/45°
CRICRI90+
DimmableDALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsReflector
Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 100lm/W
MaterialsDie cast aluminum
InstallationSurface Mounted
ProtectionIP20
FinishWhite/Black
Warranty3 years

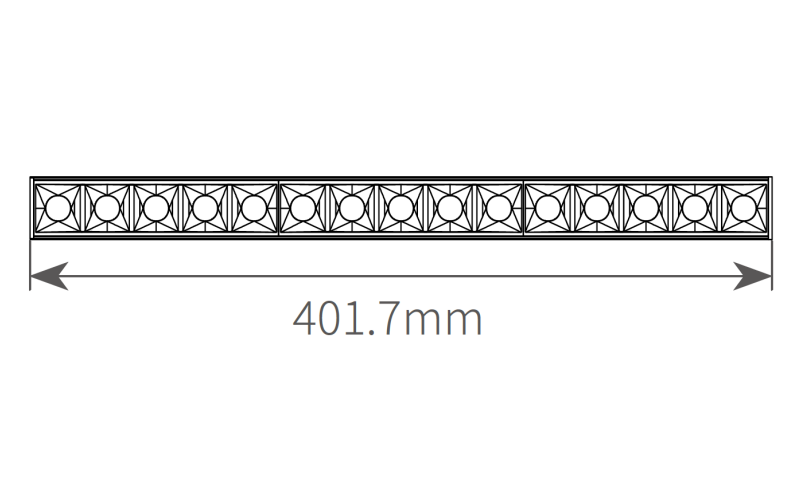

Size and drawing

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
