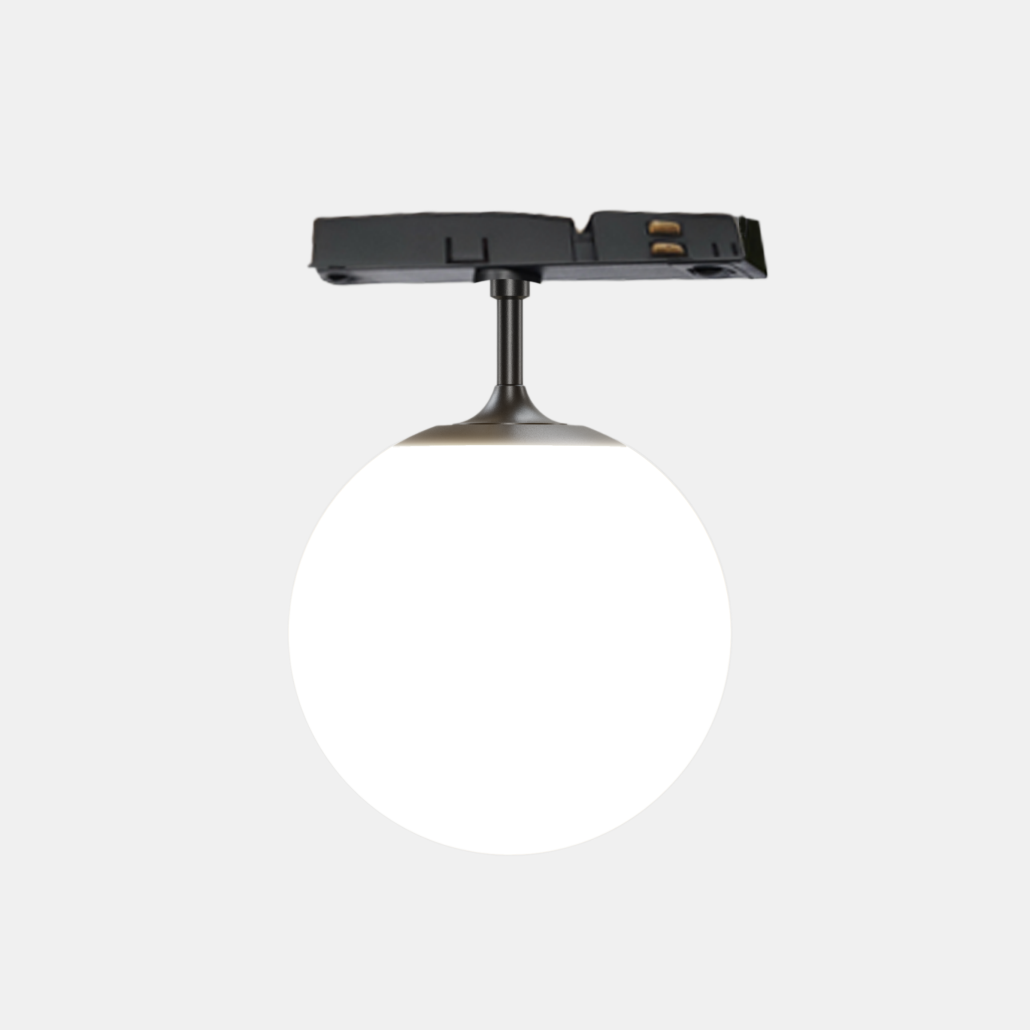

V6 D130 Architectural Tunable White Magnetic Globe 6W


Product Number:  RMB13006


Quick Info:

CCT:                           2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI:                            CRI>95
Full Beam Angle:     360°
Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux:        80Lm/W
Protection:                IP20
Warranty:                   3 years

Product Details

Description

Designed for the most demanding architectural projects, this Tunable White Smart Track Lamp combines a large diameter with advanced optical performance. It supports a wide color temperature tuning range (1800K-6500K) and seamless wireless dimming via ZigBee/Bluetooth. Its high CRI>95 and exceptional color accuracy (Rf≥92, Rg≥99) ensure all illuminated objects appear vivid and true-to-life, making it a premium choice for high-end galleries, boutique retail spaces, and sophisticated decorative lighting installations.

Specification

V6 Architectural Tunable White Magnetic Globe 6W
Product codeRMB13006
Power6W
Voltage24VDC, 48VDC
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
SizeD130mm
Color toleranceSDCM3
Beam angle360°
Power factorPF>0.9
CRICRI95+
DimmableDALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsPMMA
Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 80lm/W
MaterialsDie cast aluminum
InstallationTrack Mouted
ProtectionIP20
FinishCloud white
Warranty3 years

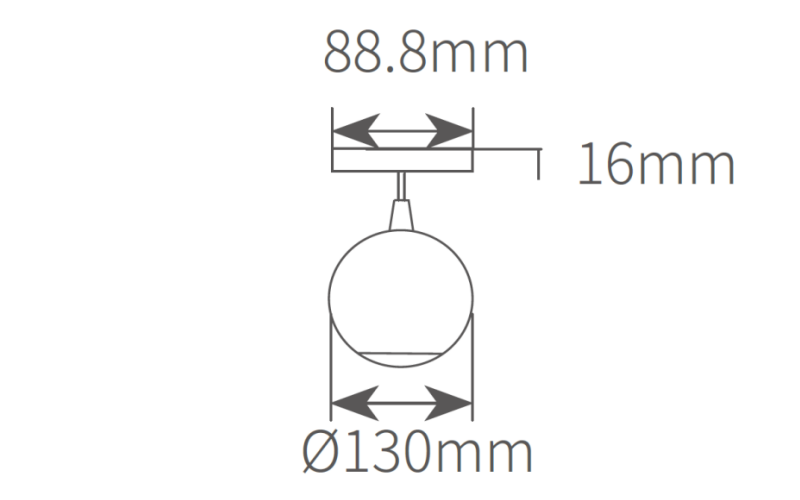

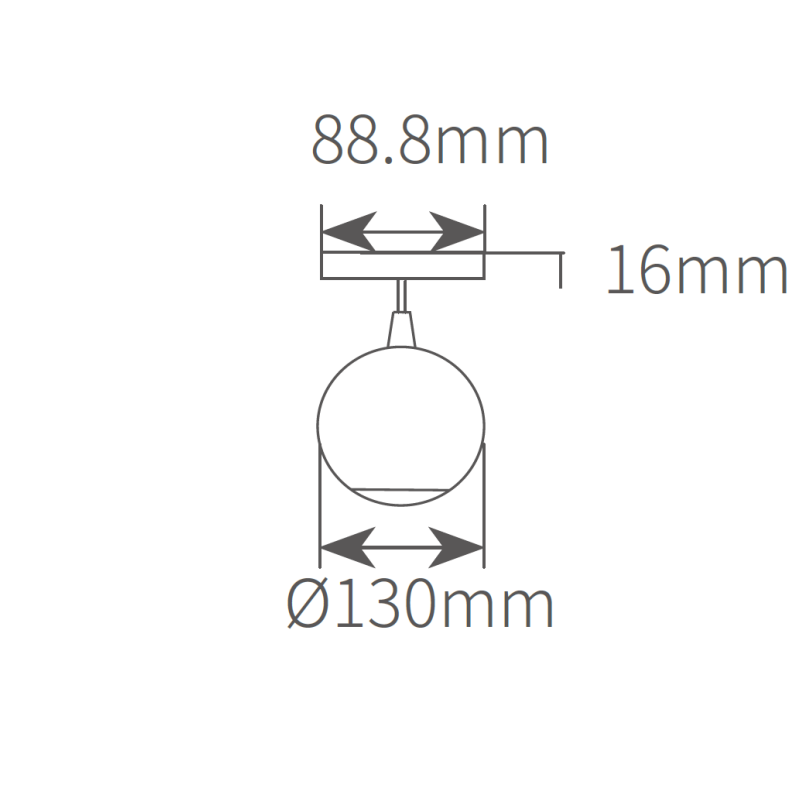

Size and drawing

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
