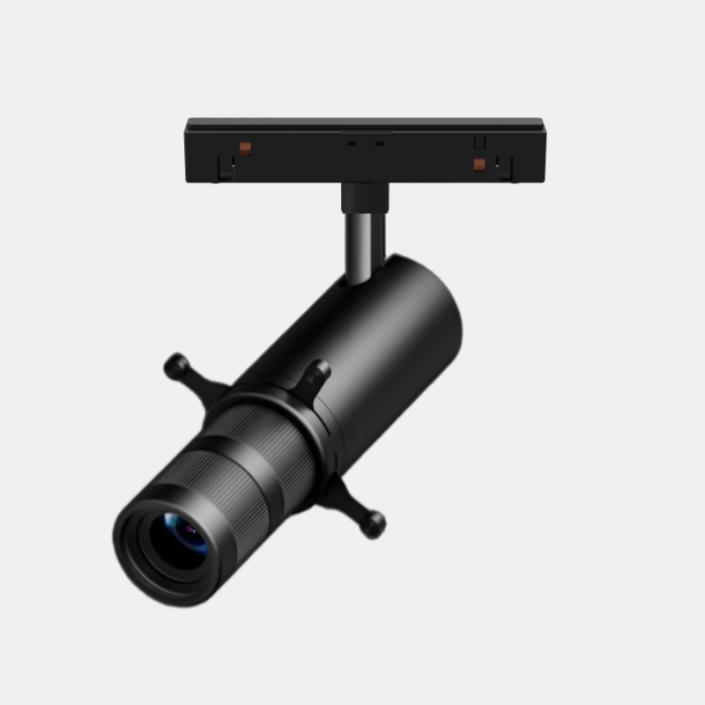

V6 Adjustable Cut-off Profile Magnetic Spotlight 15W


Product Number:  RMS4015FS


Quick Info:

CCT:                           2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI:                            CRI>95
Full Beam Angle:     20°-40°
Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux:        80Lm/W
Protection:                IP20
Warranty:                   3 years

Product Details

Description

Designed for complex curatorial and commercial displays, this Adjustable Cut-off Profile Spot offers exceptional control over light projection. It features an adjustable 20°-40° field angle and precise aiming mechanisms to perfectly frame wall art, architectural pillars, or specific retail shelving. Fully compatible with Triac, DALI, ZigBee, and Bluetooth protocols, it integrates seamlessly into smart building systems, allowing curators to create dynamic, dimmable lighting scenes that emphasize texture and spatial depth.

Specification

V6 Adjustable Cut-off Profile Magnetic Spotlight 15W
Product codeRMS4015FS
Power15W
Voltage24VDC, 48VDC
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
SizeD41xL66.1mm
Color toleranceSDCM3
Beam angle20°-40°
Power factorPF>0.9
CRICRI95+
DimmableDALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsLens
Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 80lm/W
MaterialsDie cast Aluminum
InstallationTrack Mouted
ProtectionIP20
FinishBlack/White
Warranty3 years

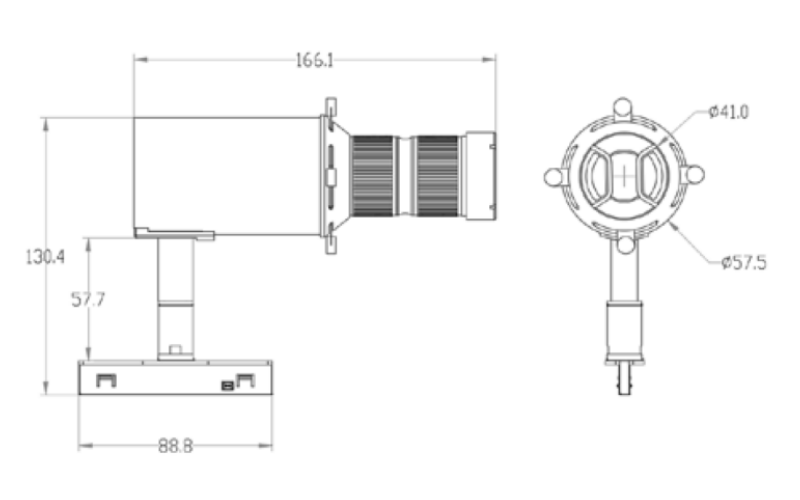

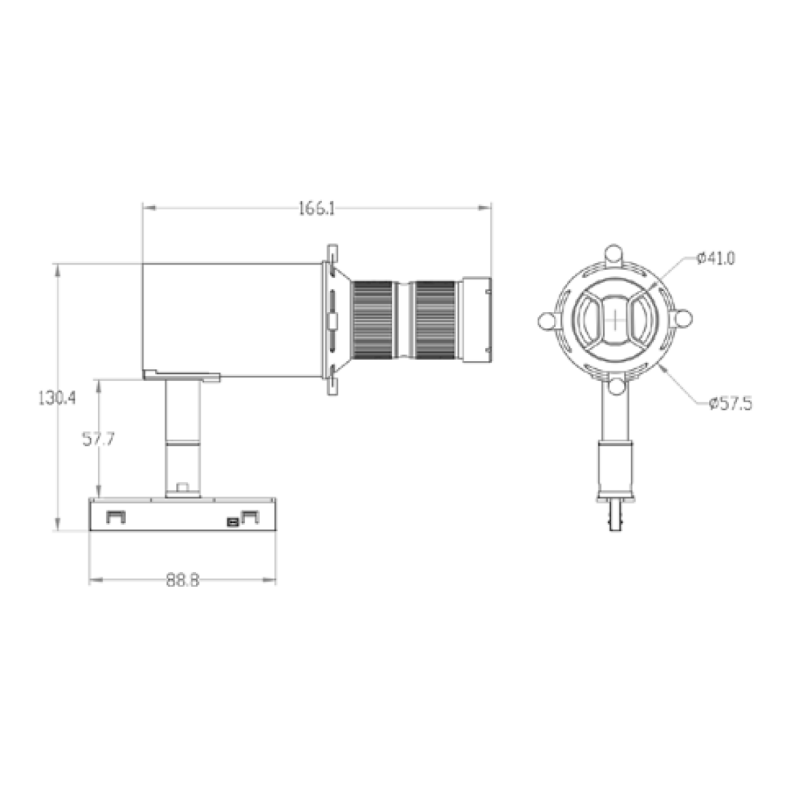

Size and drawing

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
