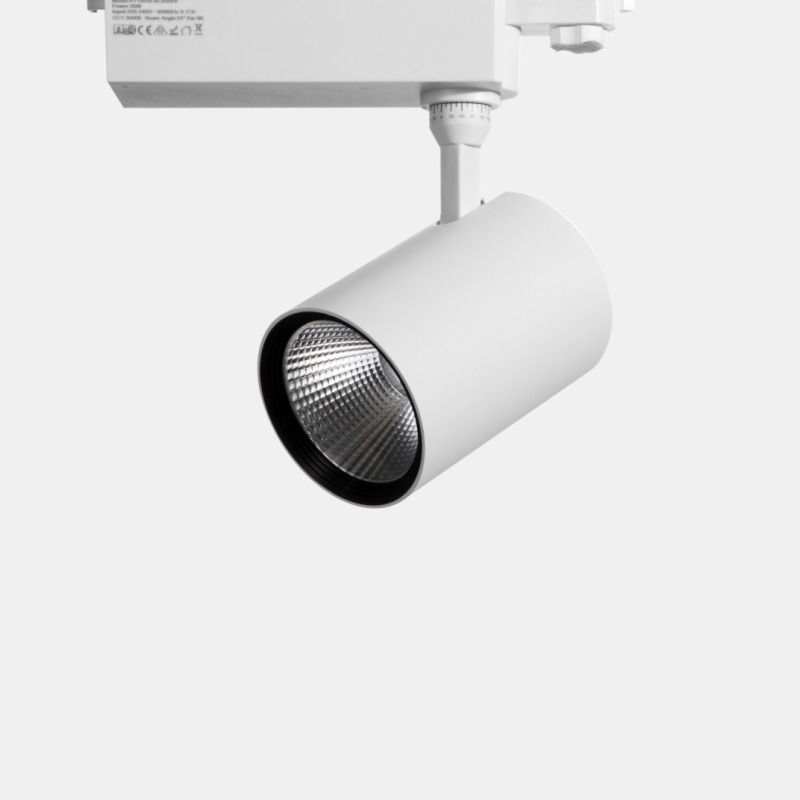

RT105-B Smart Architectural LED Track Light 56W


Product Number:   RT105-B


Quick Info:

CCT:                           2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI:                            CRI>90
Full Beam Angle:     12°/24°/40°/60°
Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux:        120Lm/W
Protection:                IP20
Warranty:                   3 years

Product Details

Description

The RT105-B 56W Versatile LED Track Light is a premium lighting solution designed for dynamic exhibition halls and retail window displays. Featuring advanced CRI90 optics and adjustable 12°/24°/40°/60° beam angles, this external driver track light provides precise spotlighting to make products stand out. Its robust aluminum housing ensures excellent stability and long-lasting performance under continuous commercial operation.

Specification

RT105-B Smart Architectural LED Track Light 56W
Product codeRT105-B
Power30W/35W/45W/56W
Voltage220-240VAC
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
SizeD105*L150mm
Color toleranceSDCM3
Beam angle12°/24°/40°/60°
Power factorPF>0.9
CRICRI90+
DimmableDALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsReflector
Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 120lm/W
MaterialsDie cast aluminum
InstallationTrack Mouted
ProtectionIP20
FinishWhite/Black
Warranty3 years

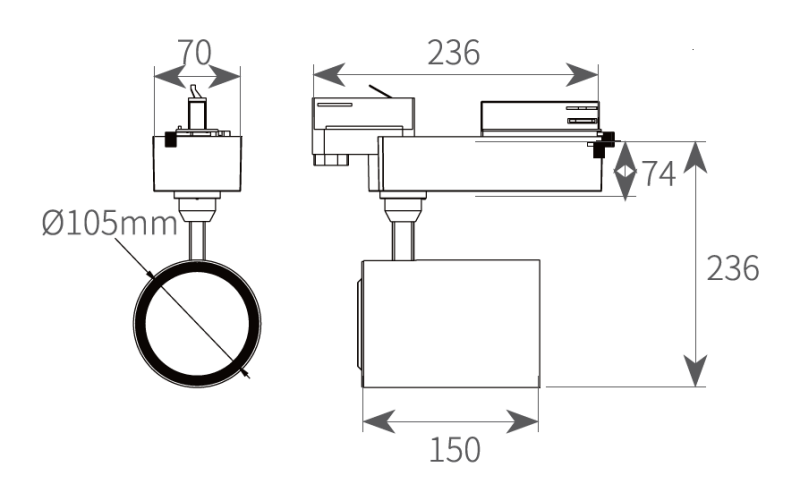

Size and drawing

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
