Product Number: MOL-JS-040-N02
Quick Info:
CCT: 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
CRI: CRI80+, CRI90+
Full Beam Angle: 120°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Lamp Efficiency: Lamp lumen >100lm/W
Protection: IP20
Warranty: 3 years

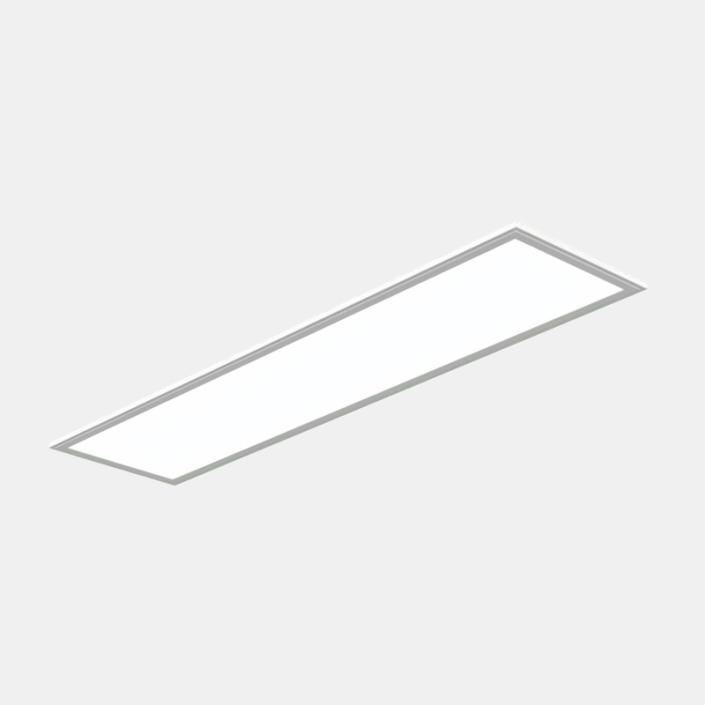

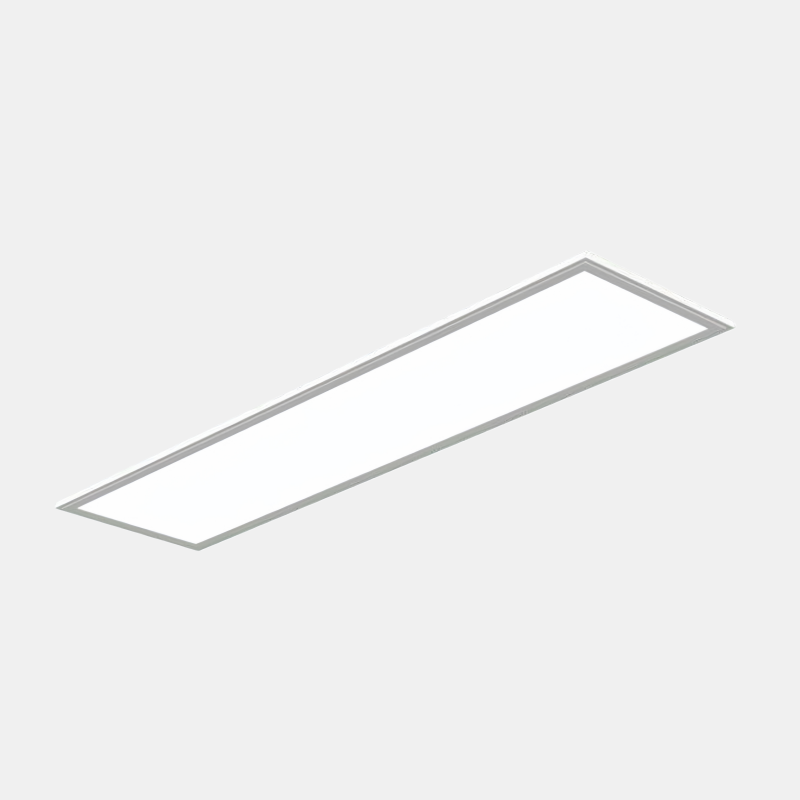

The MOL-JS-040-N02 Architectural Linear Panel Light is engineered for modern workspaces and commercial interiors. Featuring an ultra-slim aluminum housing with excellent thermal dissipation, it ensures prolonged LED performance. Integrated with UGR<19 anti-glare optics, this fixture delivers exceptional visual comfort. Supporting Triac, ZigBee, and Bluetooth controls, and offering versatile recessed, surface, or wire-suspension installations, it seamlessly adapts to modern architecture.
| MOL-JS-040-N02 Architectural Linear LED Panel Light 54W | |
| Product code | MOL-JS-040-N02 |
| Power | 54W |
| Voltage | 220-240VAC |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |

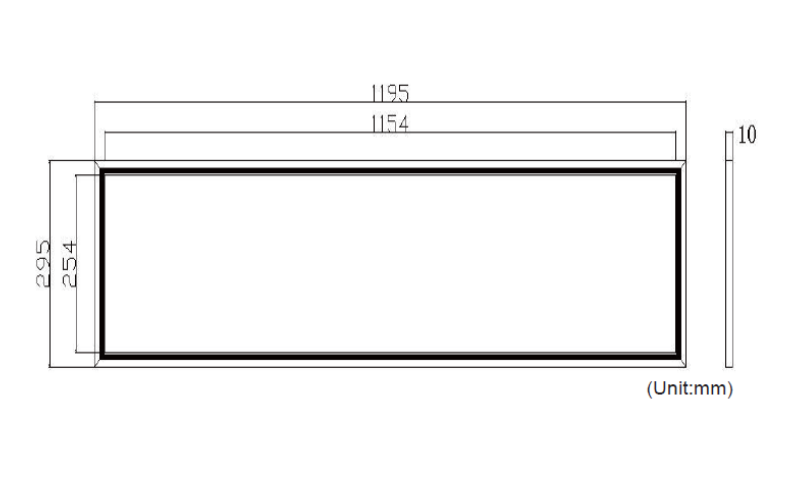

| Size | L1195mm x W295 x H10mm |
| Color tolerance | SDCM＜3 |
| Beam angle | 120° |
| Power factor | PF>0.9 |
| CRI | CRI80+, CRI90+ |
| Dimmable | DALI, Triac, 0-10V, Zigbee, Bluetooth |
| Optics | PC Diffuser |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen >100lm/W |
| Materials | Aluminum |
| Installation | Recessed/Surface Mounted/Suspension |
| Protection | IP20 |
| Finish | White |
| Warranty | 3 years |

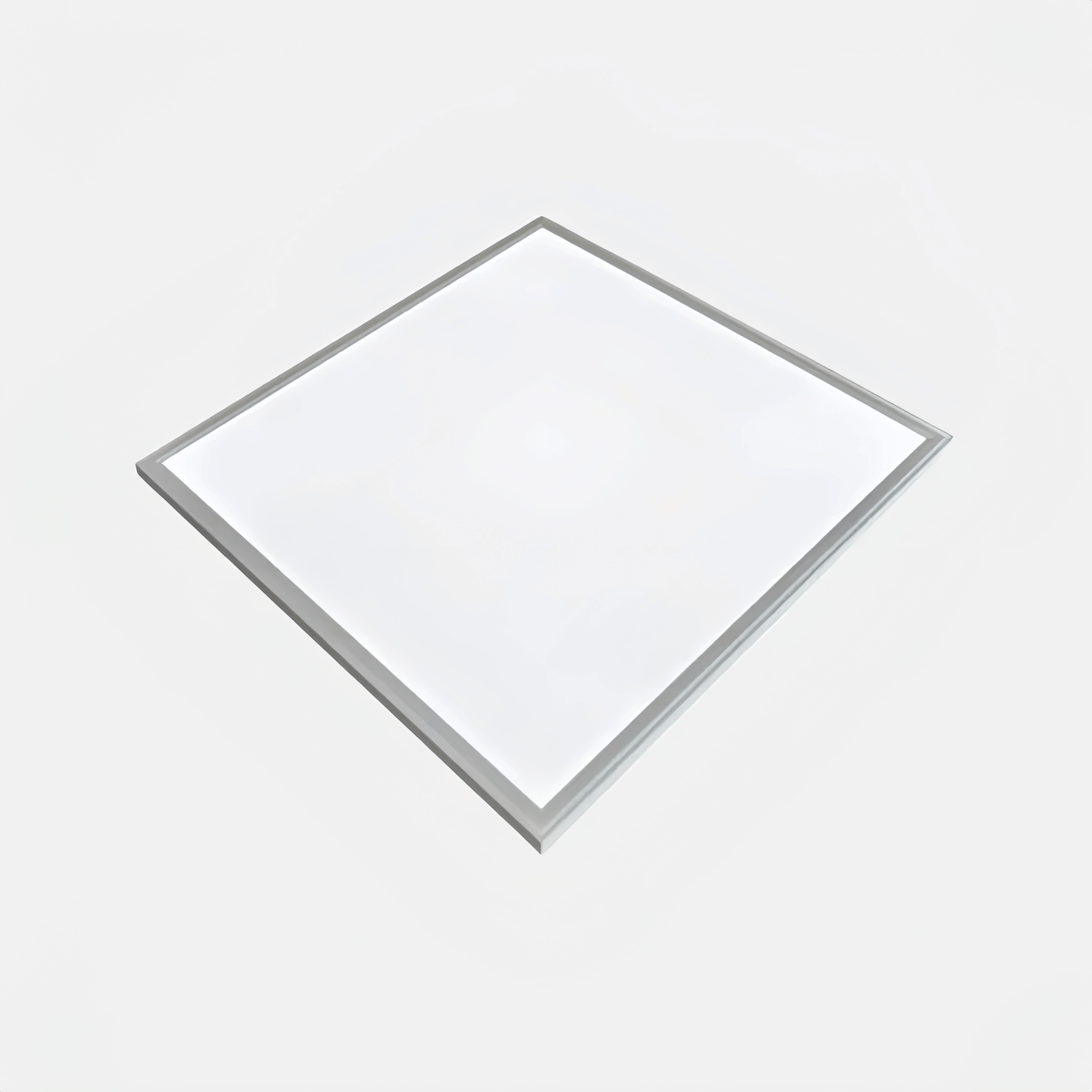

MOL-JS-036-N04 Architectural Square LED Panel Light 54W
