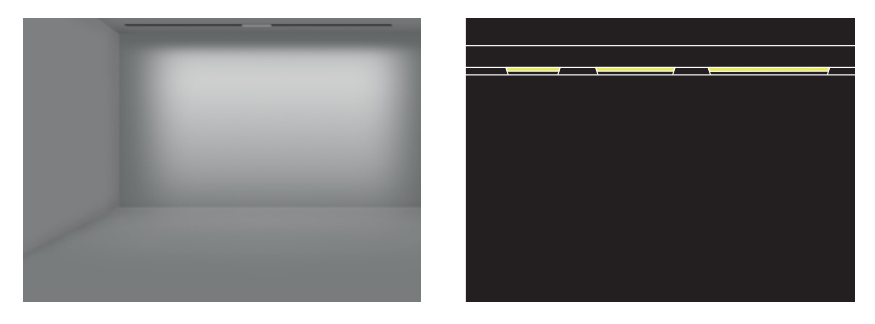

Lighting Effects
Diffuser linear , creat flood light in different length

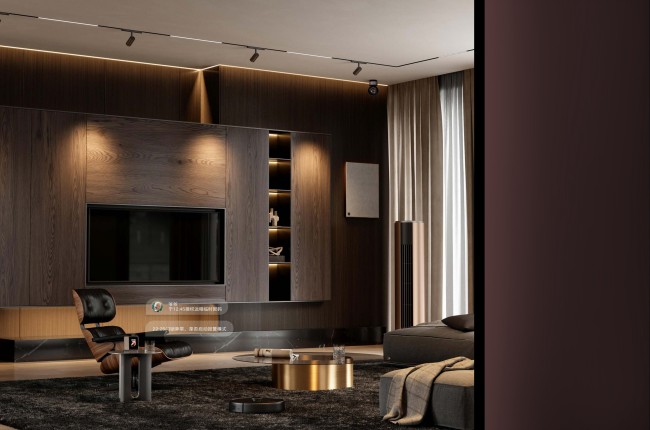

Applacation Emagery
Home , hotel , resturant , shoppes ,office
Product Details
- Low voltage 48V magnetic system with professional luminaires for commercial and residential applications. The track is designed for ceiling, wallor pendant application. It is 35mm wide, Perfect for retail and hospitality environments. The light is aimed and uses our patented Opti Beam technology.
- The light hold into track by magnetic and safety lock. No wiring to save installation charge.
- Smart control system in booth wire system DALI,0-10V&wireless Ziggbee 2.4G dimmable and CCT charges are all available.
Specification
| Model | finish color | Dimension | Output Wattage | Source Current | Source voltage | Beam Angle | Color Temperature | Luminous Flux | CRI | Dimming |
| SMLL3007 | black/white | L294*W22*H43mm | 7W | 145mA | 48VDC | 110° | 2700K/3000K/4000K/5000K | 480lm | >90Ra | on-off /0-10V dim /Zigbee dim/DALI dim |
| SMLL3015 | black/white | L308*W288*H43mm | 15W | 313mA | 48VDC | 110° | 2700K/3000K/ 4000K/5000K | 950lm | >90Ra | on-off /0-10V dim /Zigbee dim/DALI dim |
| SMLL6015 | black/white | L574*W22*H43mm | 15W | 313mA | 48VDC | 110° | 2700K/3000K/4000K/5000K | 1050lm | >90Ra | on-off /0-10V dim /Zigbee dim/DALI dim |
| SMLL9022 | black/white | L854*W22*H43mm | 22W | 458mA | 48VDC | 110° | 2700K/3000K/4000K/5000K | 1550lm | >90Ra | on-off /0-10V dim /Zigbee dim/DALI dim |
| SMLL12030 | black/white | L1131*W22*H43mm | 30W | 625mA | 48VDC | 110° | 2700K/3000K/4000K/5000K | 2100lm | >90Ra | on-off /0-10V dim /Zigbee dim/DALI dim |
