In-ground light series

Inground light series

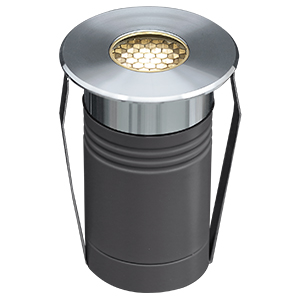

Stainless steel panel, ABS embedded parts make it more convenient for you to install and remove the LED Inground light. The panel of the LED Inground light is flat with the ground and will not affect our normal walking.The high transmittance tempered glass will not affect the lighting effect. High grade housing and LEDs will extend the life of the LED underground inground light.

1 2

Lighting Effects

Dapibus cras viverra magnis lectus quis placerat vel a.

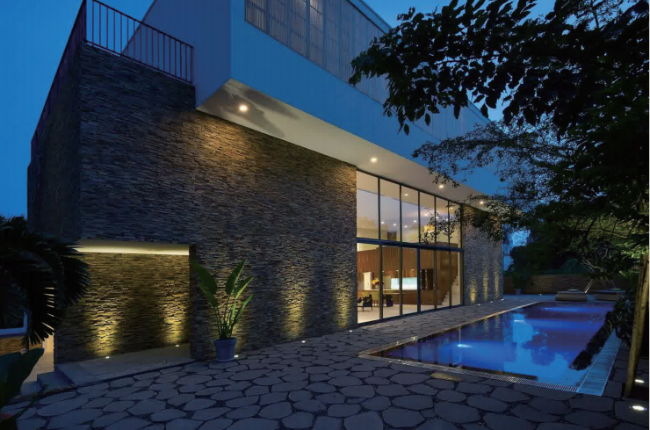

Applacation Emagery

Widely used in: ground decorative lighting in urban squares, sculptures, garden communities, roads, parks, scenic spots, commercial pedestrian streets, parking lots and other places.

Product Details

1.IP67 waterproof Mini LED Inground light for outdoor garden/ Step/ Stair /walk lighting use;
2.Buried,recessed, floor recessed, ceiling recessed installation optional.
3.Stainless steel SUS304#/SUS316# front cover;
4.Clear, frosted, diffused glass optional.
5.Heat resistance international standard rubber cable.
6.Using high-quality and high-precision material and structural waterproof, easy to maintain.

Specification

Model	light source	Wattage	Lens degree	Input voltage	Operating current	Color Temperature	Luminous Flux	CRI	Dimming
B2BNR0157	1×2W	2.4W	20°	24V	50mA	2000K/3000K/6000K	135lm-148lm	Ra＞80	Triac PWM 1-10V Dali
B2BNS0157	1×2W	1.5W	20°	24V	500mA	2000K/3000K/6000K	135lm-148lm	Ra＞80	Triac PWM 1-10V Dali
D2BMR0156	1×1W	1.2W	120°	24V	100mA	2000K/3000K/6000K	58lm-66lm	Ra＞80	Triac PWM 1-10V Dali
D2BMS0156	1×1W	1W	120°	24V	350mA	2000K/3000K/6000K	58lm-66lm	Ra＞80	Triac PWM 1-10V Dali
D2YBR0134	1×0.5W	0.6W	/	24V	26mA	2000K/3000K/6000K	31lm-36lm	Ra＞80	Triac PWM 1-10V Dali
D2YBR0134	1×0.5W	0.6W	/	24V	26mA	2000K/3000K/6000K	31lm-36lm	Ra＞80	Triac PWM 1-10V Dali
B2YCR0157	1×2.0W	2.5W	25°	24V	110mA	2000K/3000K/6000K	120lm-135lm	Ra＞80	Triac PWM 1-10V Dali
B2WDR0157 A	1×2W	2.5W	30°	24V	105mA	2000K/3000K/6000K	143lm-183lm	Ra＞80	Triac PWM 1-10V Dali
B2WDS0157 A	1×2W	2.5W	30°	24V	105mA	2000K/3000K/6000K	143lm-183lm	Ra＞80	Triac PWM 1-10V Dali
C2WDR0157 A	1×2.0W	2.5W	45°	24V	105mA	2000K/3000K/6000K	130lm-158lm	Ra＞80	Triac PWM 1-10V Dali
B2CAR0158	1×3W	4.5W	30°	24V	187mA	2000K/3000K/6000K	267lm-305lm	Ra＞80	Triac PWM 1-10V Dali
B2CAS0158	1×3W	4.5W	30°	24V	187mA	2000K/3000K/6000K	267lm-305lm	Ra＞80	Triac PWM 1-10V Dali
FC2VAR0658	6×3W	20.4W	45°/35°	24V	850mA	2000K/3000K/6000K	1307lm-1504lm	Ra＞80	Triac PWM 1-10V Dali
FC2VAS0658	6×3W	20.4W	45°/35°	24V	850mA	2000K/3000K/6000K	1307lm-1504lm	Ra＞80	Triac PWM 1-10V Dali
XB2DFR0257	2×1.5W	3.6W	20°	24V	150mA	2000K/3000K/6000K	190lm-250lm	Ra＞80	Triac PWM 1-10V Dali
XB2DFS0257	2×1.5W	3.6W	20°	24V	150mA	2000K/3000K/6000K	190lm-250lm	Ra＞80	Triac PWM 1-10V Dali
XB2EFR0656	6×1.2W	7.8W	20°	24V	325mA	2000K/3000K/6000K	570lm-700lm	Ra＞80	Triac PWM 1-10V Dali
XB2EFS0656	6×1.2W	7.8W	20°	24V	325mA	2000K/3000K/6000K	570lm-700lm	Ra＞80	Triac PWM 1-10V Dali
XB2FFR0956	9×1.2W	12W	20°	24V	500mA	2000K/3000K/6000K	756lm-1059lm	Ra＞80	Triac PWM 1-10V Dali
XB2FFS0956	9×1.2W	12W	20°	24V	500mA	2000K/3000K/6000K	756lm-1059lm	Ra＞80	Triac PWM 1-10V Dali
XB2GFR1257	12×1.5W	24.5W	13°	24V	1020mA	2000K/3000K/6000K	1496lm-1885lm	Ra＞80	Triac PWM 1-10V Dali
XB2GFS1257	12×1.5W	24.5W	13°	24V	1020mA	2000K/3000K/6000K	1496lm-1885lm	Ra＞80	Triac PWM 1-10V Dali
