Underwater Light

Underwater Lights

Lighting Effects

The perfect distribution of the light beam and the LED source, both monochrome and RGBW, enhance the appearance of the illuminated environment and create striking multi-coloured effects.

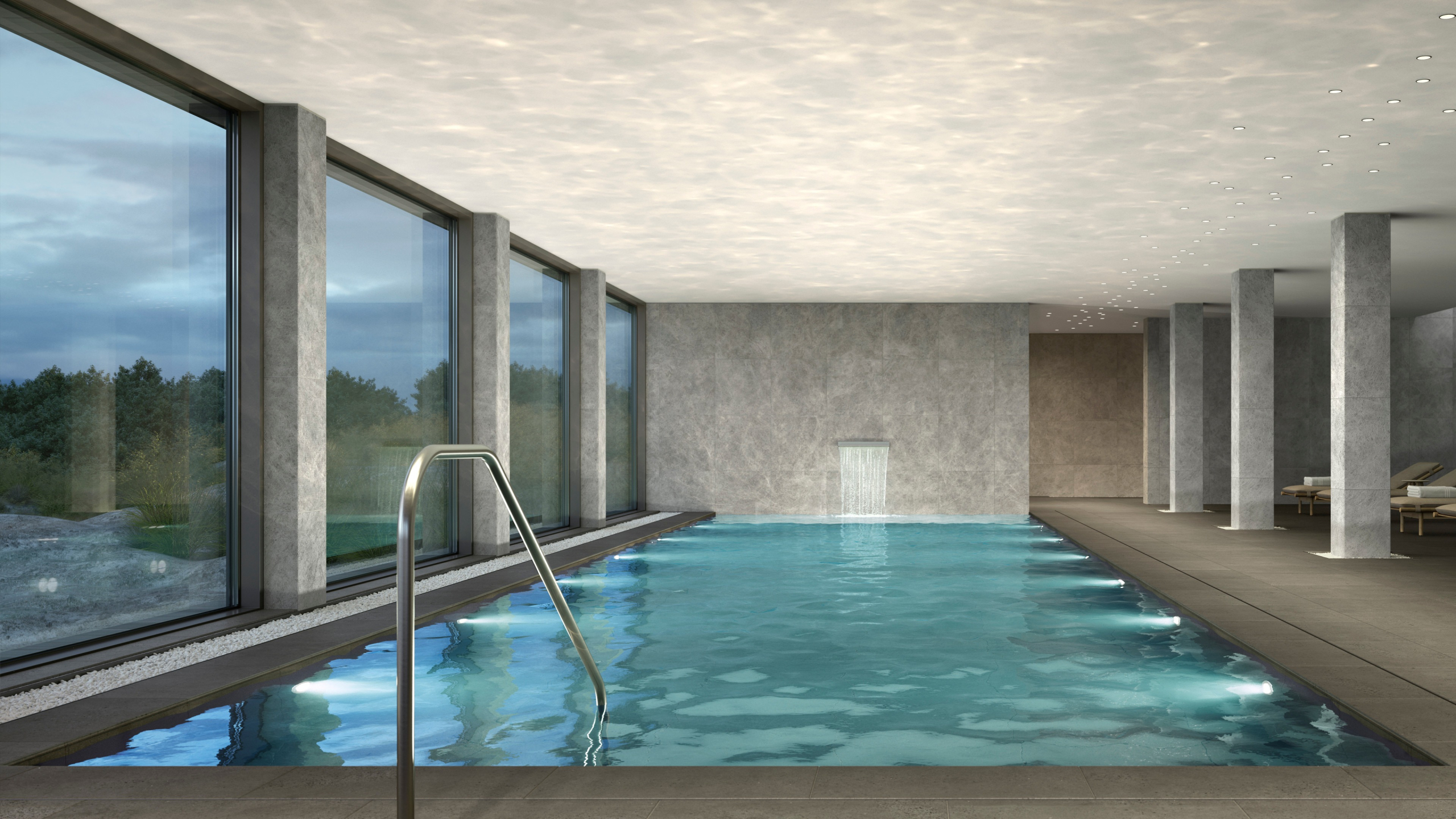

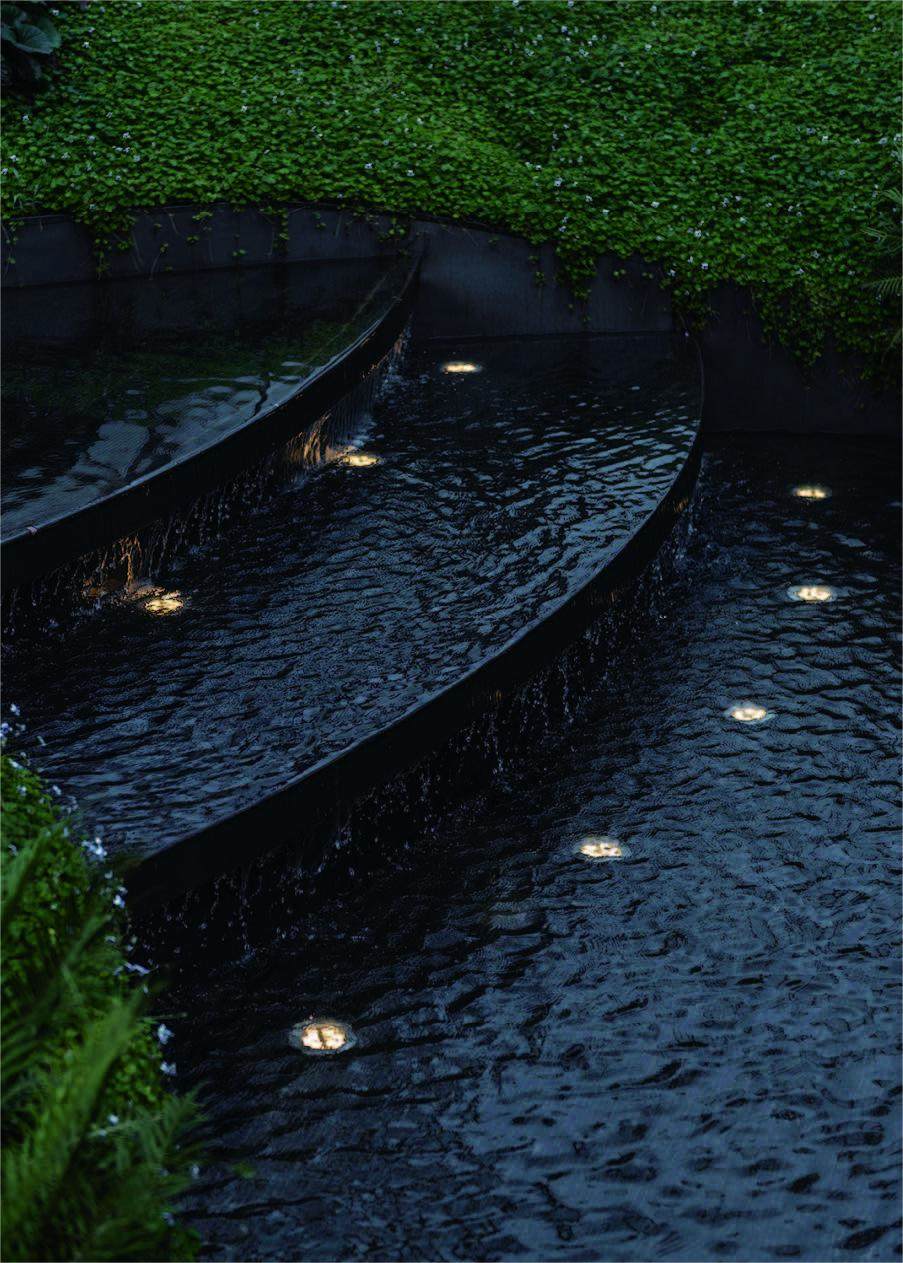

Applacation Emagery

Thanks to the cooling system the water enters through the housing and flows out heated through the holes of the upper ring. The housing allows easy wiring and easy maintenance.

Product Details

Protection class IP68 10m
Salt Spray >800 hours
Safety class III
Supply voltage 24/48VDC
316# Stainless steel + Tempered glass + Chlorine waterproof cable
Recommended installation depth 400 to 700 mm below water surface
Safety regulations must be observed when installing and operating these luminaires and operating devices.

Specification

Image	Model	Light source	Wattage	Lens degree	Input voltage	Color Temperature	Luminous Flux	CRI	IP	Dimming

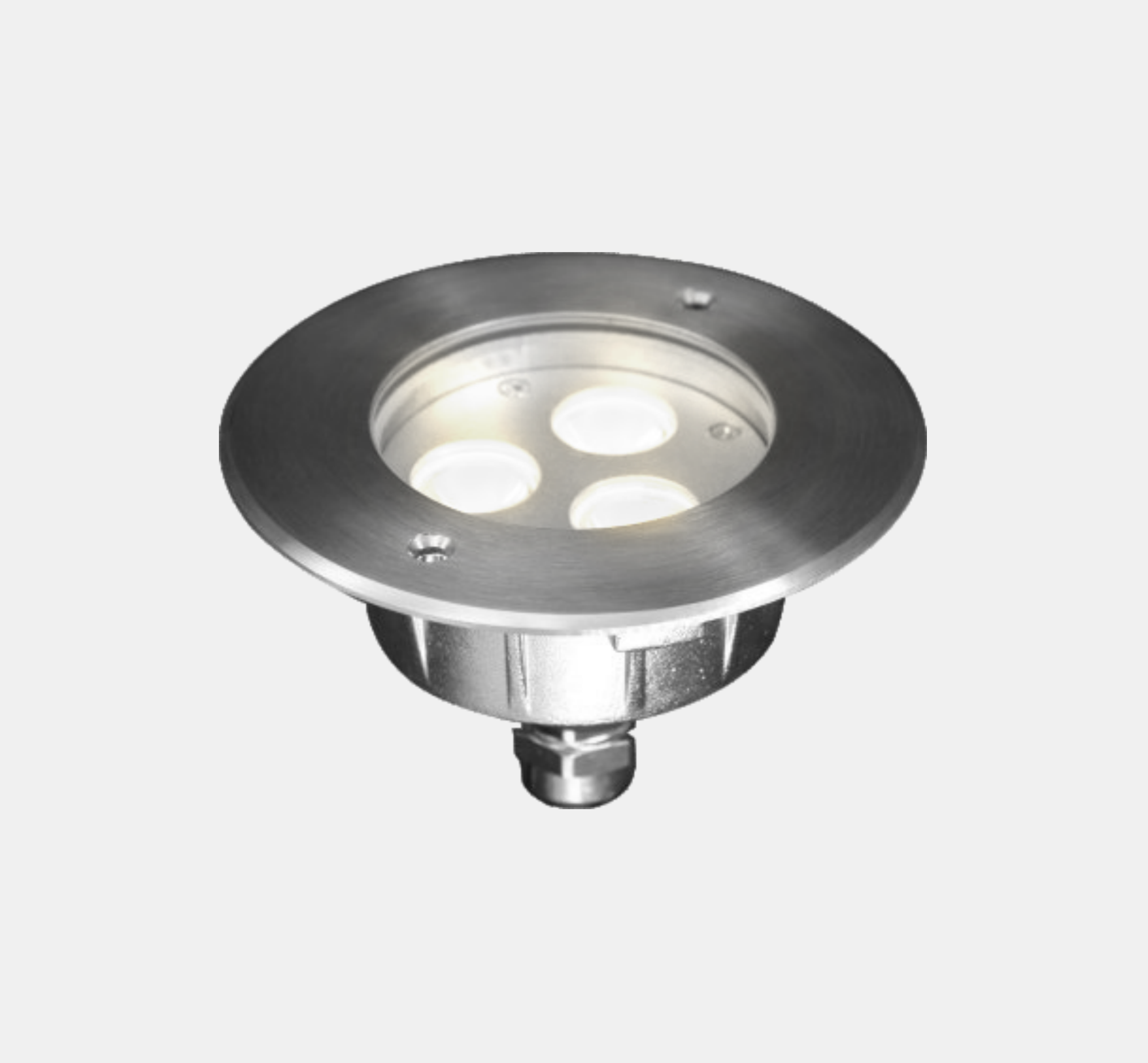

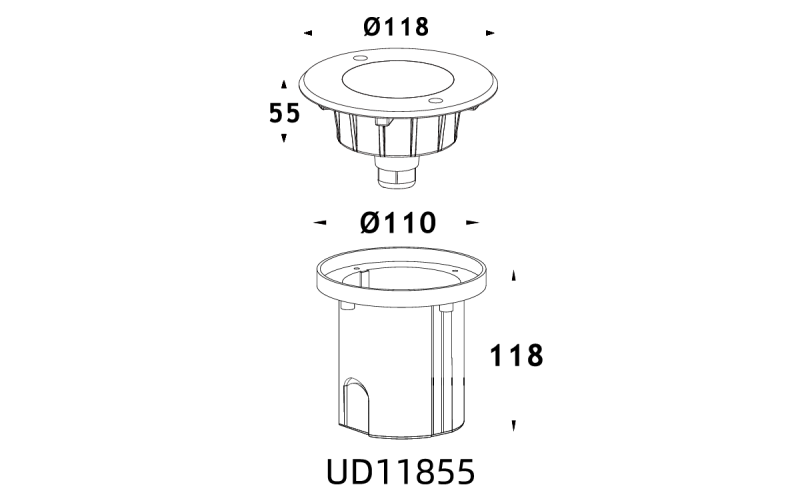

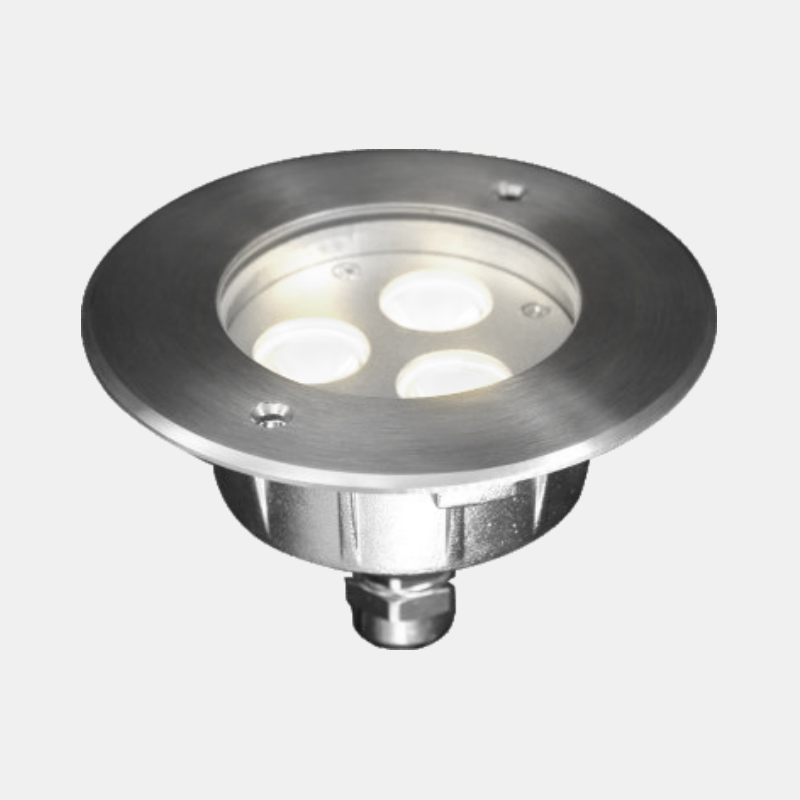

	UD11855	3×2W	6W	10°/20°/30°/60°	12/24VDC	2200-6500K R/G/B	530Lm	Ra＞80	IP68	Triac/PWM/1-10V/Dali/DMX512
	UD11855	3×3W	9W	25°/40°/60°	12/24VDC	RGB 3in1	230Lm	Ra＞80	IP68	Triac/PWM/1-10V/Dali/DMX512
	UD11855	3×3W	9W	25°/40°/60°	12/24VDC	RGB 4in1	320Lm	Ra＞80	IP68	Triac/PWM/1-10V/Dali/DMX512

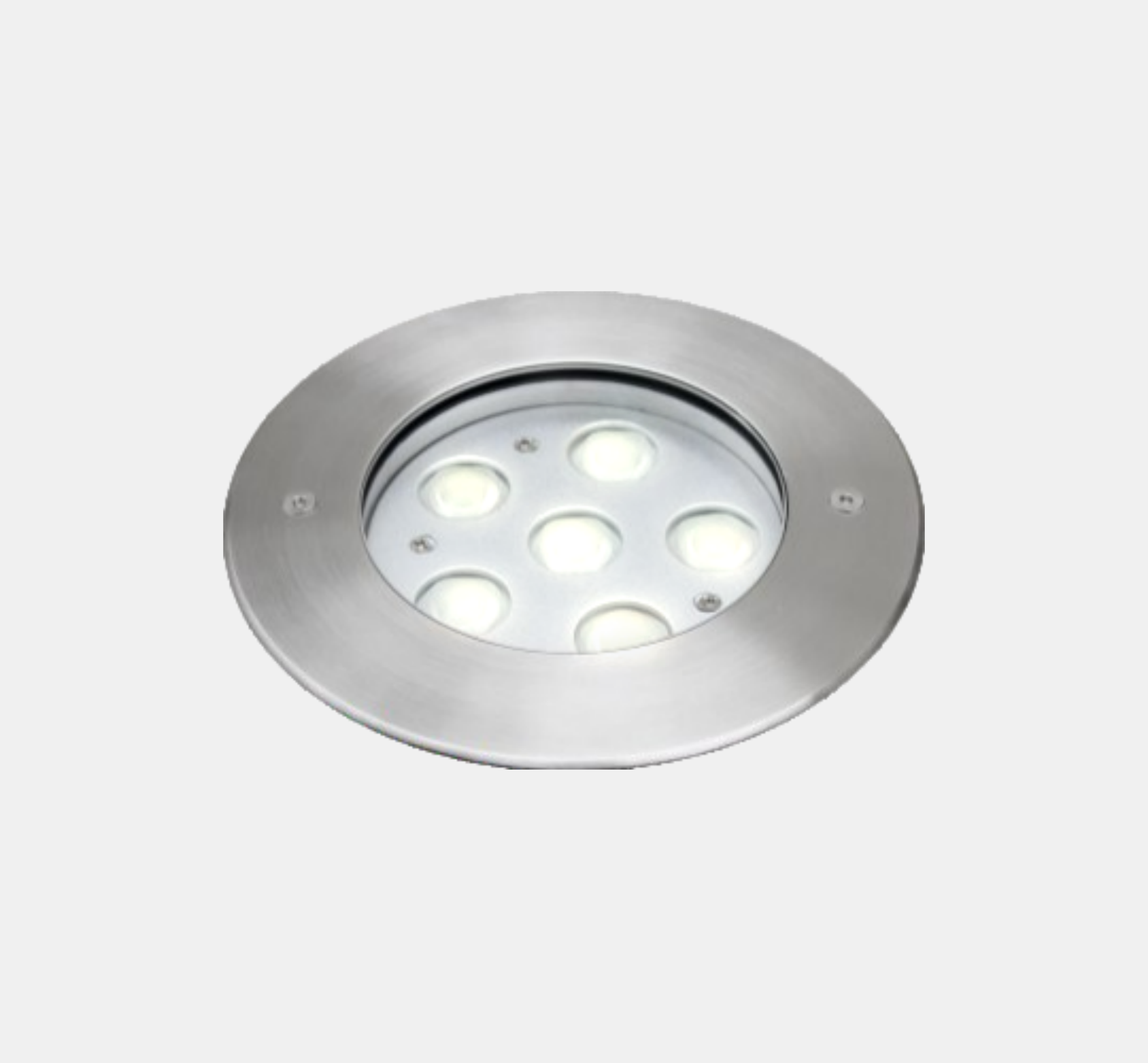

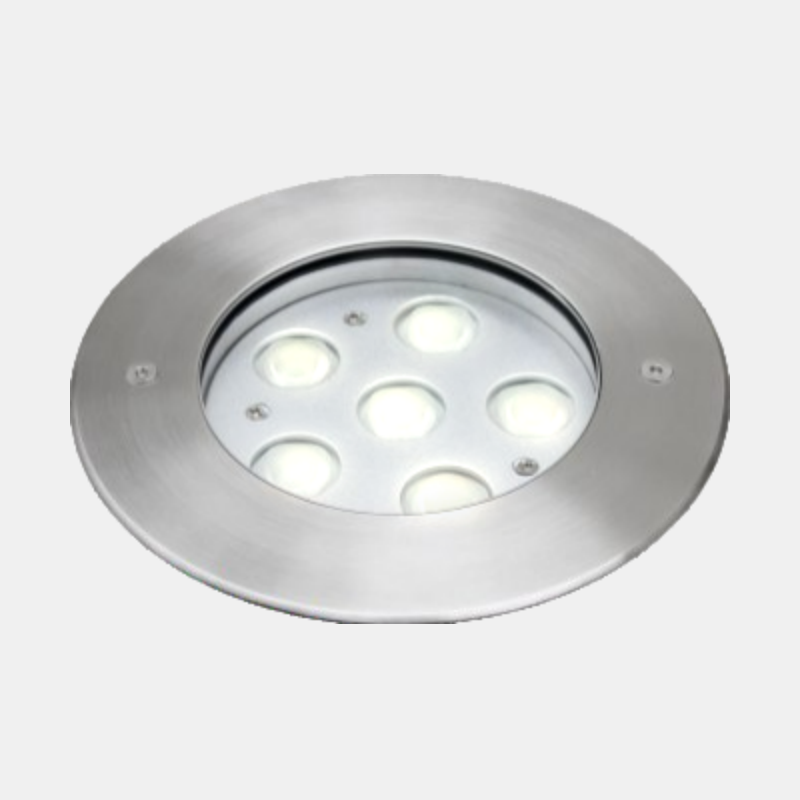

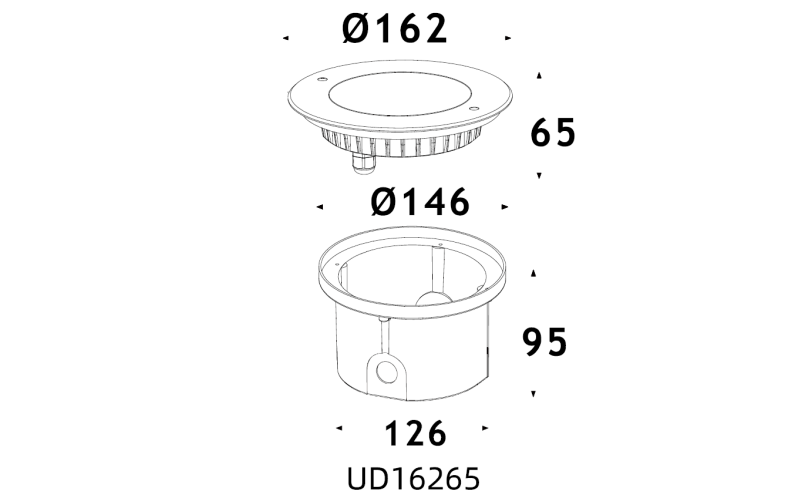

	UD16265	6×2W	12W	10°/20°/30°/60°	12/24VDC	2200-6500K R/G/B	980Lm	Ra＞80	IP68	Triac/PWM/1-10V/Dali/DMX512
	UD16265	6×3W	18W	25°/40°/60°	12/24VDC	RGB 3in1	490Lm	Ra＞80	IP68	Triac/PWM/1-10V/Dali/DMX512
	UD16265	6×3W	18W	25°/40°/60°	12/24VDC	RGB 4in1	680Lm	Ra＞80	IP68	Triac/PWM/1-10V/Dali/DMX512

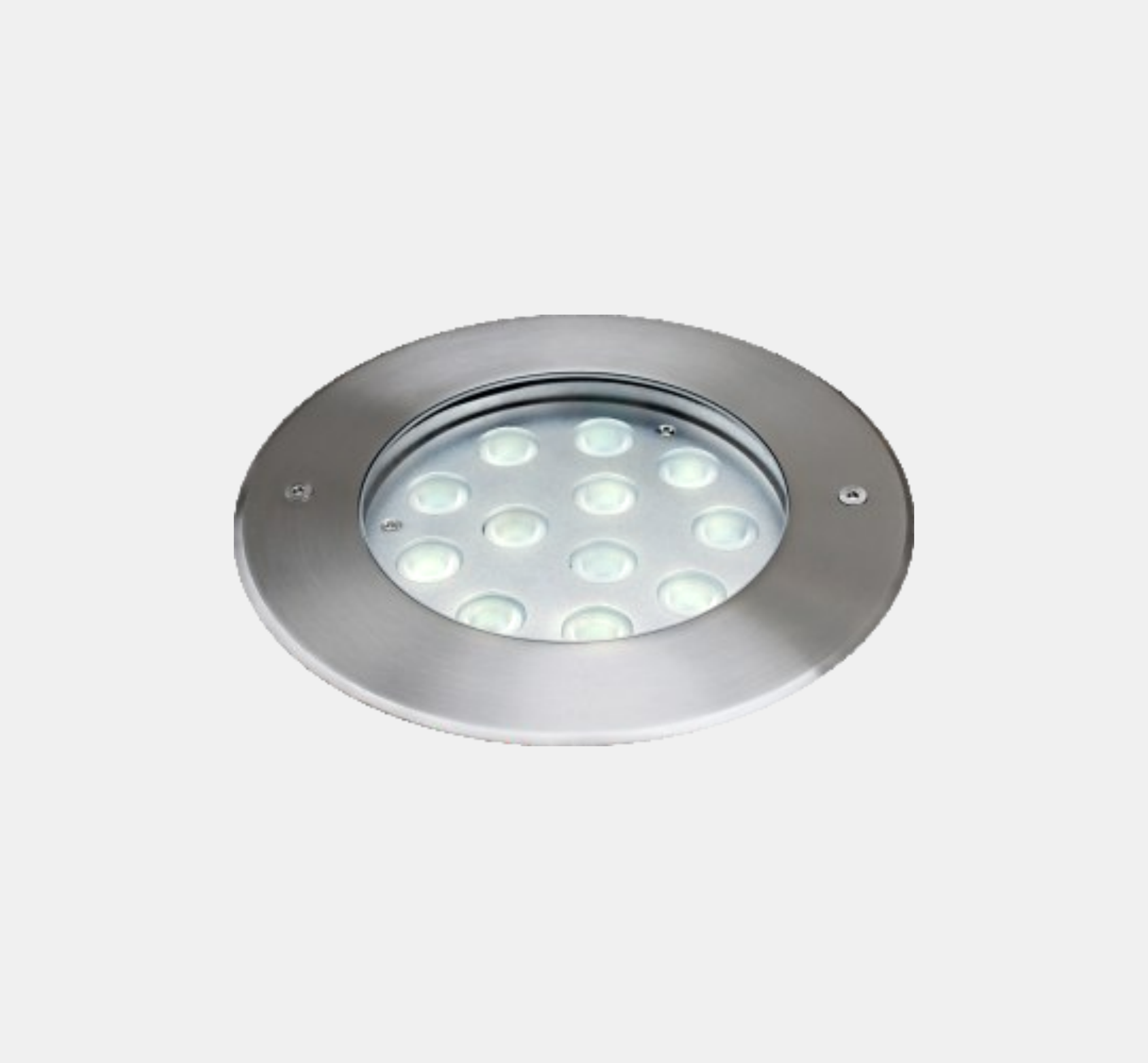

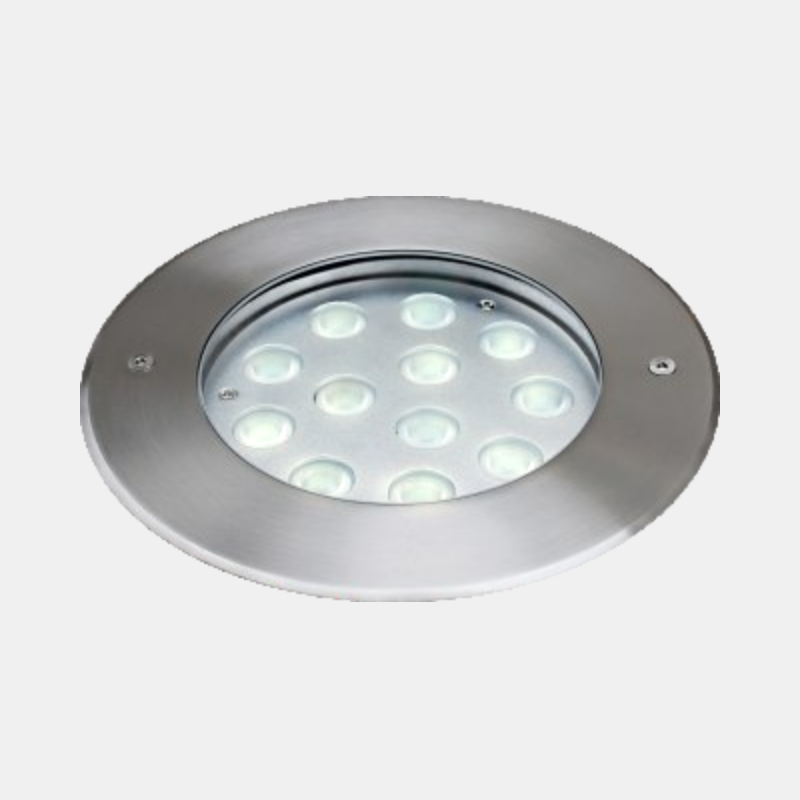

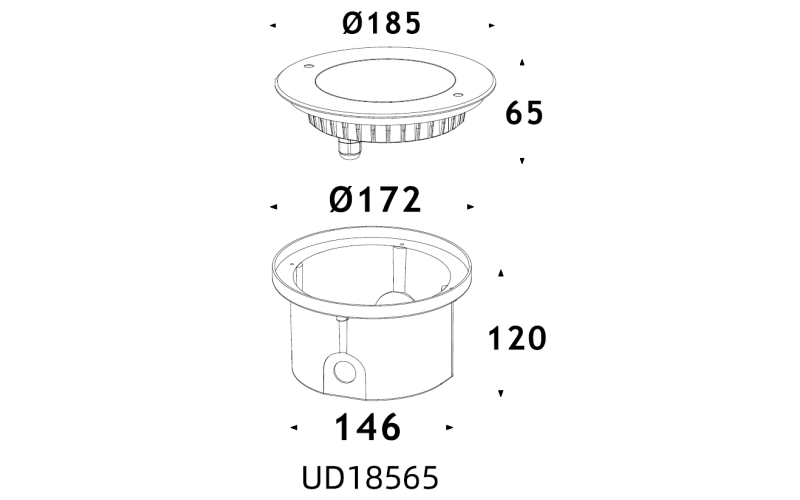

	UD18565	12×2W	12W	10°/20°/30°/60°	12/24VDC	2200-6500K R/G/B	1920Lm	Ra＞80	IP68	Triac/PWM/1-10V/Dali/DMX512
	UD18565	12×3W	8W	25°/40°/60°	12/24VDC	RGB 3in1	900Lm	Ra＞80	IP68	Triac/PWM/1-10V/Dali/DMX512
	UD18565	12×3W	10.5W	25°/40°/60°	12/24VDC	RGB 4in1	1260Lm	Ra＞80	IP68	Triac/PWM/1-10V/Dali/DMX512
