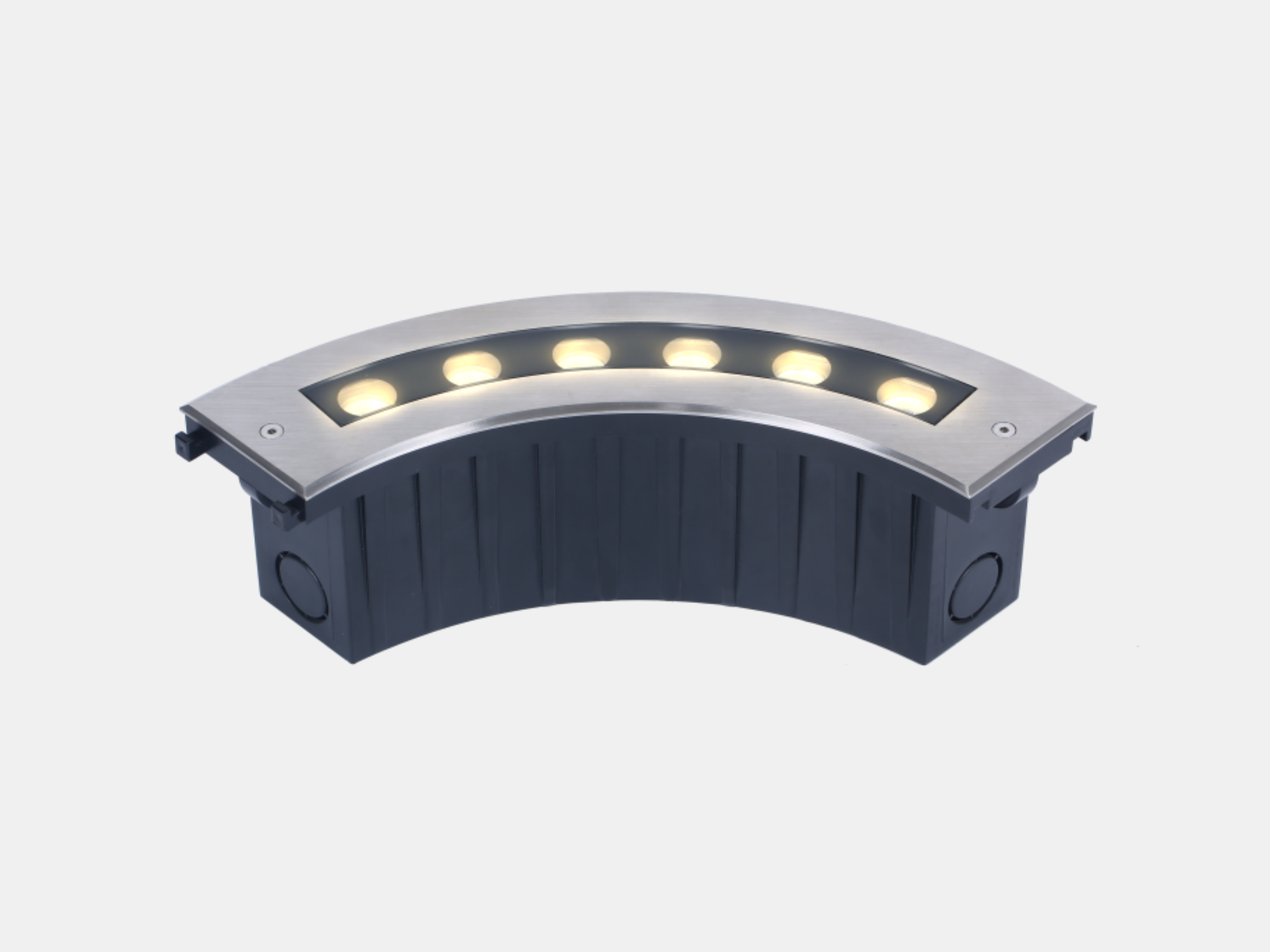

High Power Curved LED Inground Light

1 2

CRV Circle LED Inground Light Lighting effect

Lighting Effects

Diffuser linear , creat flood light in different length

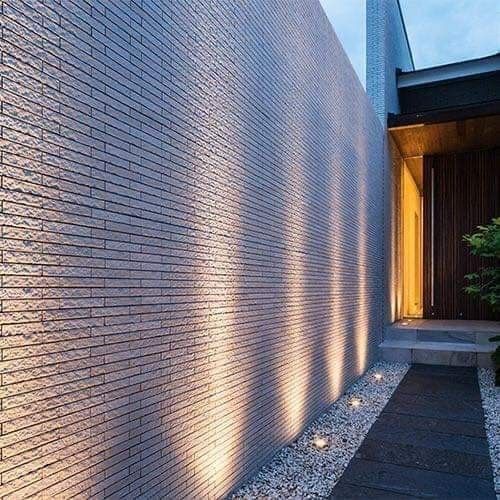

Applacation Emagery

Widely used in: ground decorative lighting in urban squares, sculptures, garden communities, roads, parks, scenic spots, commercial pedestrian streets, parking lots and other places.

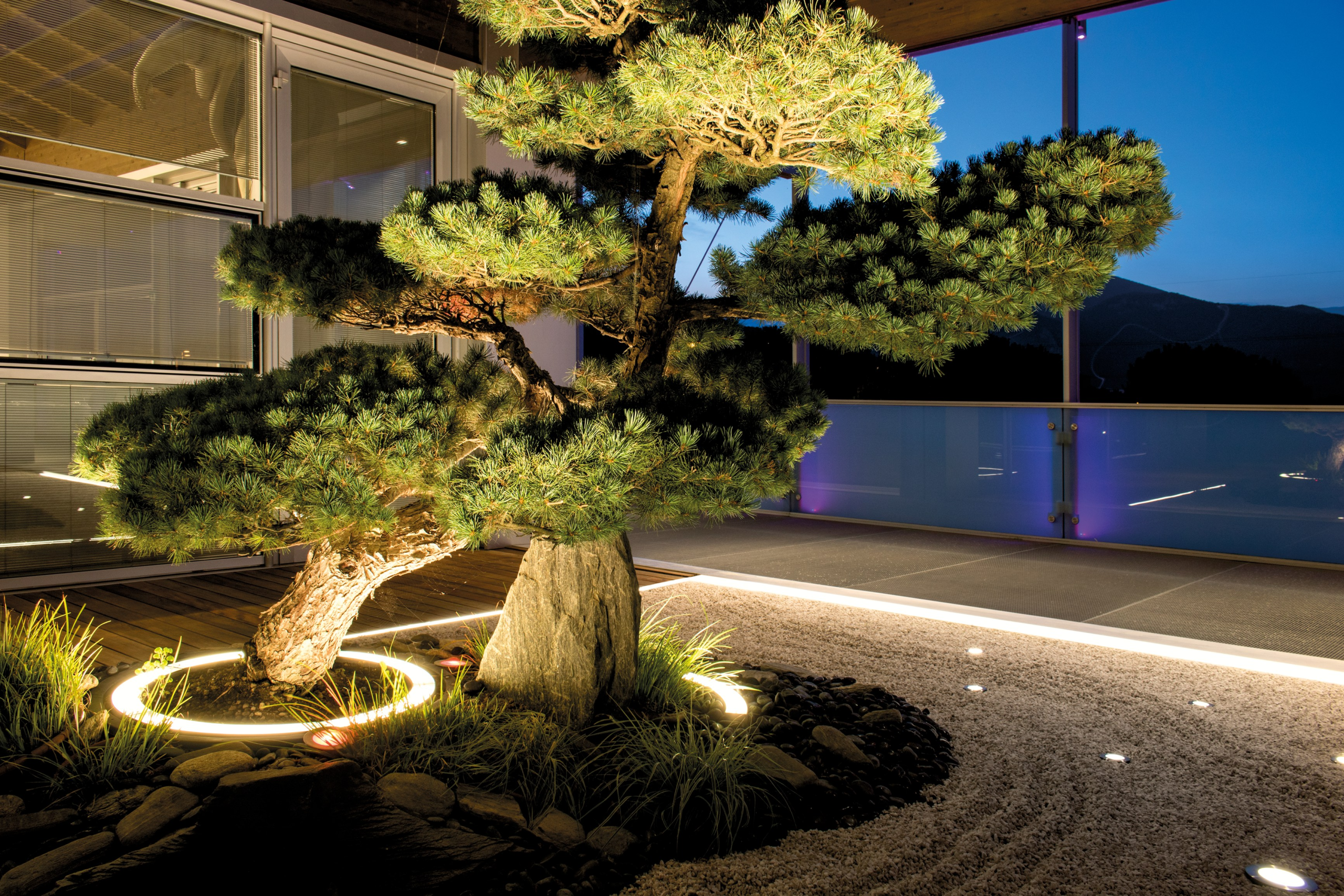

CRV Circle LED Inground Light Application Image-2

Product Details

1.IP67 waterproof Mini LED Inground light for outdoor garden/ Step/ Stair /walk lighting use;
2.Buried,recessed, floor recessed, ceiling recessed installation optional.
3.12#Aluminum + Tempered glass;
4.Clear, frosted, diffused glass optional.
5.Heat resistance international standard rubber cable.
6.Using high-quality and high-precision material and structural waterproof, easy to maintain.

Specification

Model	Light source	Wattage	Lens degree	Input voltage	Dimension	Color Temperature	Luminous Flux	CRI	IP	Dimming

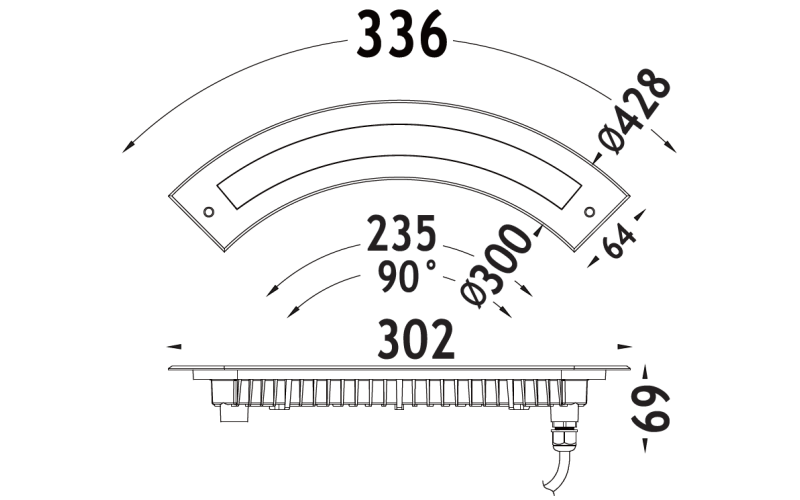

CRV336	6×2W	12.5W	10°/25°/40°/60°/80°/1045°/1560°	12/24VDC 220-240VAC	Arc Length336*W64mm	2700K-6000K RBG	750lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
CRV336	6×2.5W	15W	12°/25°/40°/60°/12*45°	24VDC	Arc Length336*W64mm	RBG 3in1	435lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
CRV336	6×3.5W	21W	12°/25°/40°/60°/12*45°	24VDC	Arc Length336*W64mm	RBG 4in1	609lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512

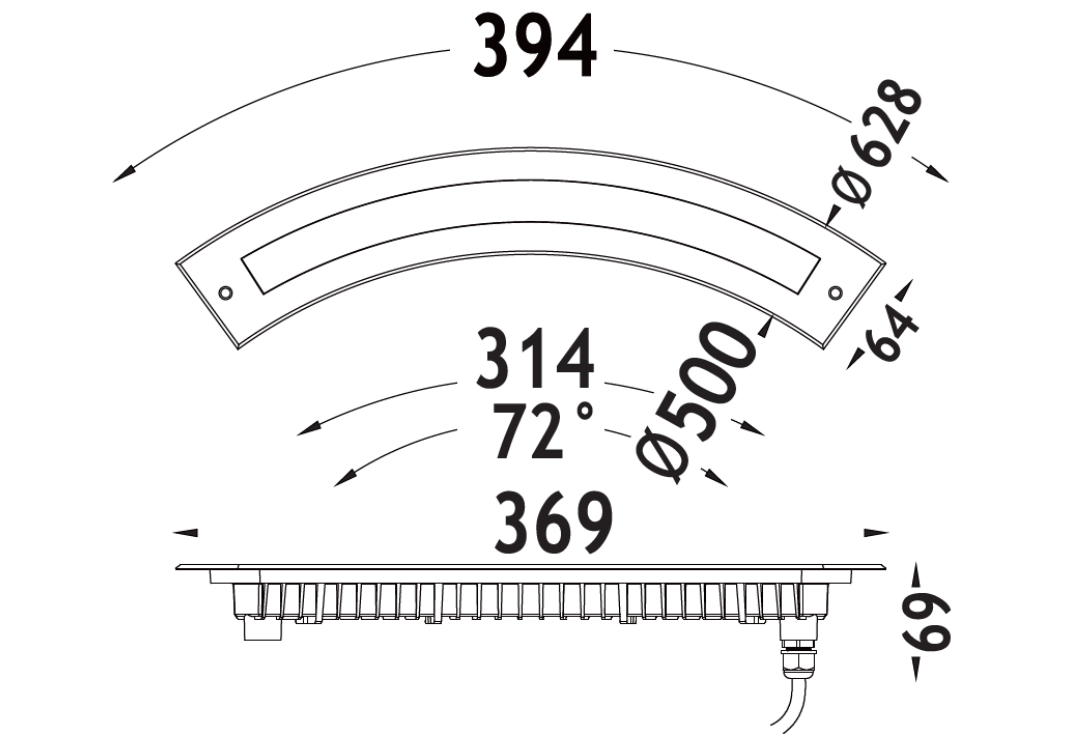

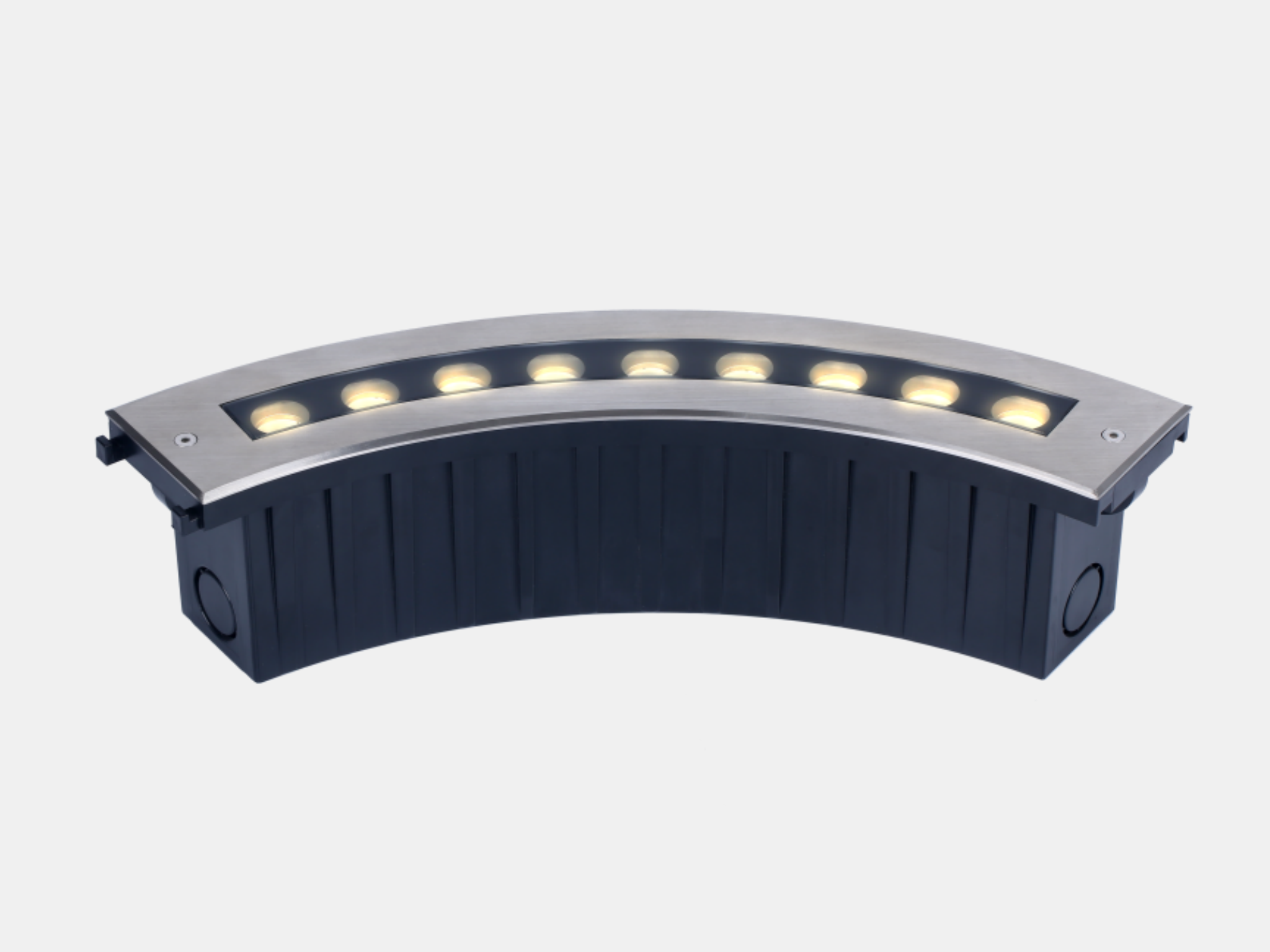

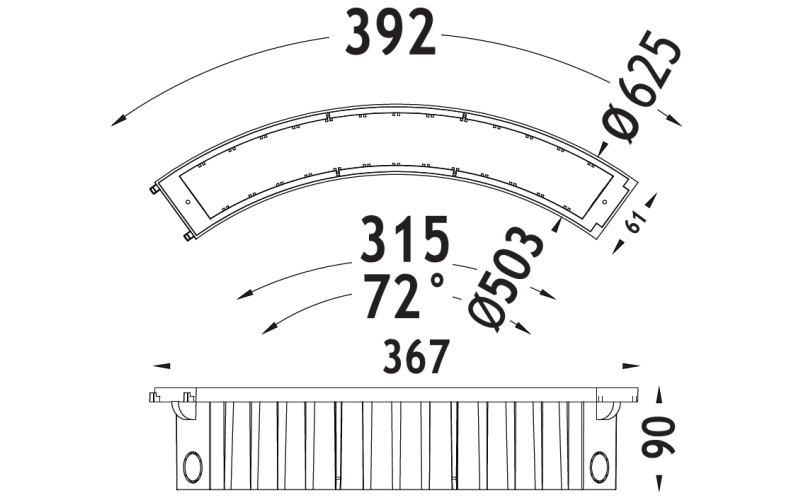

CRV394	9×2W	18W	10°/25°/40°/60°/80°/1045°/1560°	12/24VDC 220-240VAC	Arc Length394*W64mm	2700K-6000K RBG	1080lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
CRV394	9×2.5W	23W	12°/25°/40°/60°/12*45°	24VDC	Arc Length394*W64mm	RBG 3in1	660lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
CRV394	9×3.5W	32W	12°/25°/40°/60°/12*45°	24VDC	Arc Length394*W64mm	RBG 4in1	928lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
