Pull out spotlight series

Pull-out spot light PoR13025 die-casting high-rank aluminum integrated
heat sink. international top COB CITlZEN chip, high quality driver,
combined with KWT exclusive optical system of lens, Standard driver
originally researched and developed by KWT, stable specifications, glare-
free, good heat sink, brilliant quality, more than 40,000 hours life span.

1 2

Product Details

High Ra>90, Low SDCM<3 High efficacy, high illuminance, accurate beam anglemakes ofcomfortable illumination atmosphere Rotatable horizontal355° and vertical 90°, EasyInstallation, for wide applications Refined components and design, guarantee a longlifespan of over 40,000 hours User-centeredinstallationdesign, convenient andsimple use Elegantappearance, can be pulled out [/av_textblock][/av_one_full][/av_section][av_layout_row border='' min_height_percent='' min_height_pc='25' min_height='0' color='main_color' mobile='av-flex-cells' mobile_breaking='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' id='' custom_class='' aria_label='' av_element_hidden_in_editor='0' av_uid='av-5wyte7'] [av_cell_one_full vertical_align='top' padding='30px,12%,30px,12%' background='bg_color' background_color='#ffffff' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' background_attachment='scroll' background_position='top left' background_repeat='no-repeat' link='' linktarget='' link_hover='' mobile_display='' custom_class='' av_uid='av-hff6n'][av_heading heading='Specification ' tag='h3' link='' link_target='' style='blockquote modern-quote modern-centered' size='45' subheading_active='' subheading_size='15' margin='1%,0px,2%,0px' padding='10' icon_padding='10' color='custom-color-heading' custom_font='' icon_color='' show_icon='' icon='ue800' font='' icon_size='' custom_class='' id='' admin_preview_bg='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' av-medium-font-size-title='' av-small-font-size-title='' av-mini-font-size-title='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av-medium-font-size-1='' av-small-font-size-1='' av-mini-font-size-1='' av_uid='av-1v6ehr'][/av_heading][av_textblock textblock_styling_align='' textblock_styling='' textblock_styling_gap='' textblock_styling_mobile='' size='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' font_color='' color='' id='' custom_class='' template_class='' av_uid='av-ludtrfw0' sc_version='1.0' admin_preview_bg='']

Model	finish color	Dimension	Cutout size	Output Wattage	Source　 Current	Source voltage	Beam Angle	Color Temperature	Luminous Flux	CRI	Dimming

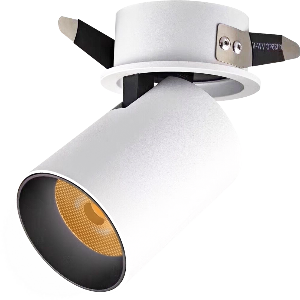

PORC7312	black/white	Ø73*H118	Ø65	12W	300mA	36V	Lens: 12/24/36° Reflector: 15/24/38/60°	2700K/3000K/4000K	1112-1120lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
PORM6212	black/white	Ø62*H160	/	12W	300mA	36V	Lens: 12/24/36° Reflector: 15/24/38/60°	2700K/3000K/4000K	1112-1120lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
POR9812	black/white	Ø98*H120	Ø90	12W	300mA	36V	Lens: 12/24/36° Reflector: 15/24/38/60°	2700K/3000K/4000K	1112-1120lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
POS10012	black/white	ɸ100100H120mm	Ø90*90	12W	300mA	36V	Lens: 12/24/36° Reflector: 15/24/38/60°	2700K/3000K/4000K	1112-1120lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
POD100-2*12	black/white	185100H120	Ø175*90	2*12W	600mA	36V	Lens: 12/24/36° Reflector: 15/24/38/60°	2700K/3000K/4000K	2380-3020lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
POT100-3*12	black/white	270100H120	Ø260*90	3*12W	850mA	36V	Lens: 12/24/36° Reflector: 15/24/38/60°	2700K/3000K/4000K	2380-3020lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
POR13015	black/white	Ø130*H135	Ø120	15W	350mA	36V	Lens: 12/24/36° Reflector: 15/24/38/60°	2700K/3000K/4000K	1770-2450lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
POS13015	black/white	ɸ130130H135mm	Ø120*120	15W	350mA	36V	Lens: 12/24/36° Reflector: 15/24/38/60°	2700K/3000K/4000K	1770-2450lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
POD130-2*15	black/white	130240H135	Ø120*230	2*15W	720mA	36V	Lens: 12/24/36° Reflector: 15/24/38/60°	2700K/3000K/4000K	4992-4982lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
POT130-3*15	black/white	130345H135	Ø120*335	3*15W	1100mA	36V	Lens: 12/24/36° Reflector: 15/24/38/60°	2700K/3000K/4000K	6375-6695lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
POR13025	black/white	Ø130*H135	Ø120	25W	600mA	36V	15/24/36°	2700K/3000K/4000K	1770-2450lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
POS13025	black/white	ɸ130130H135mm	Ø120*120	25W	600mA	36V	15/24/36°	2700K/3000K/4000K	1770-2450lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
POD130-2*25	black/white	240130H135	Ø120*230	2*25W	1200mA	36V	12/24/38°	2700K/3000K/4000K	4992-4982lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
POT130-3*25	black/white	345130H135	Ø120*335	3*25W	1800mA	36V	12/24/38°	2700K/3000K/4000K	6375-6695lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
