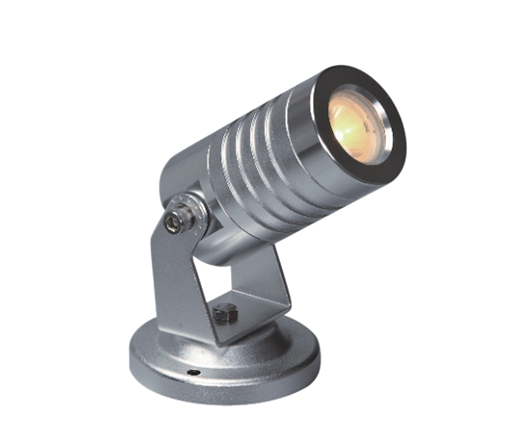

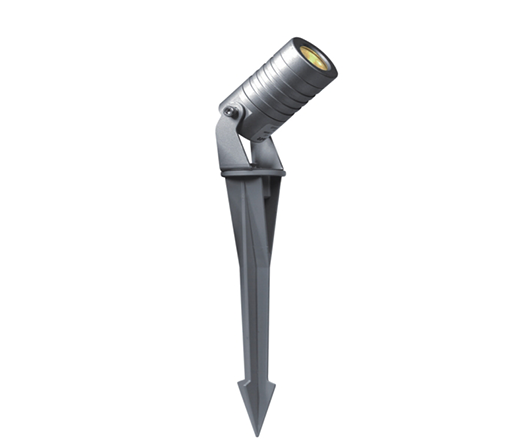

Landscape Spot Light

1 2

Lighting Effects

Diffuser linear , creat flood light in different length

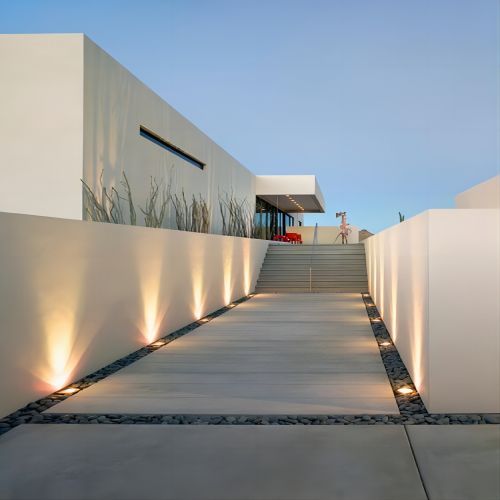

Applacation Emagery

Widely used in: ground decorative lighting in urban squares, sculptures, garden communities, roads, parks, scenic spots, commercial pedestrian streets, parking lots and other places.

Product Details

HighRa>90,LowSDCM<3 High efficacy, high illuminance Glare-free design, perfect light spot and accurate beamangle ,make surroundings ofcomfortable illumination Non-flicker driver for superior surrounding lighting requirement Integrated molded light housing with convective holes forbetter heat dissipation,interior driver, low-temperature operation guaranteed Refined components and design, guarantee along life span of over 40,000 hrs

Specification

Model	Light source	Wattage	Lens degree	Input voltage	Dimension	Color Temperature	Luminous Flux	CRI	IP	Dimming

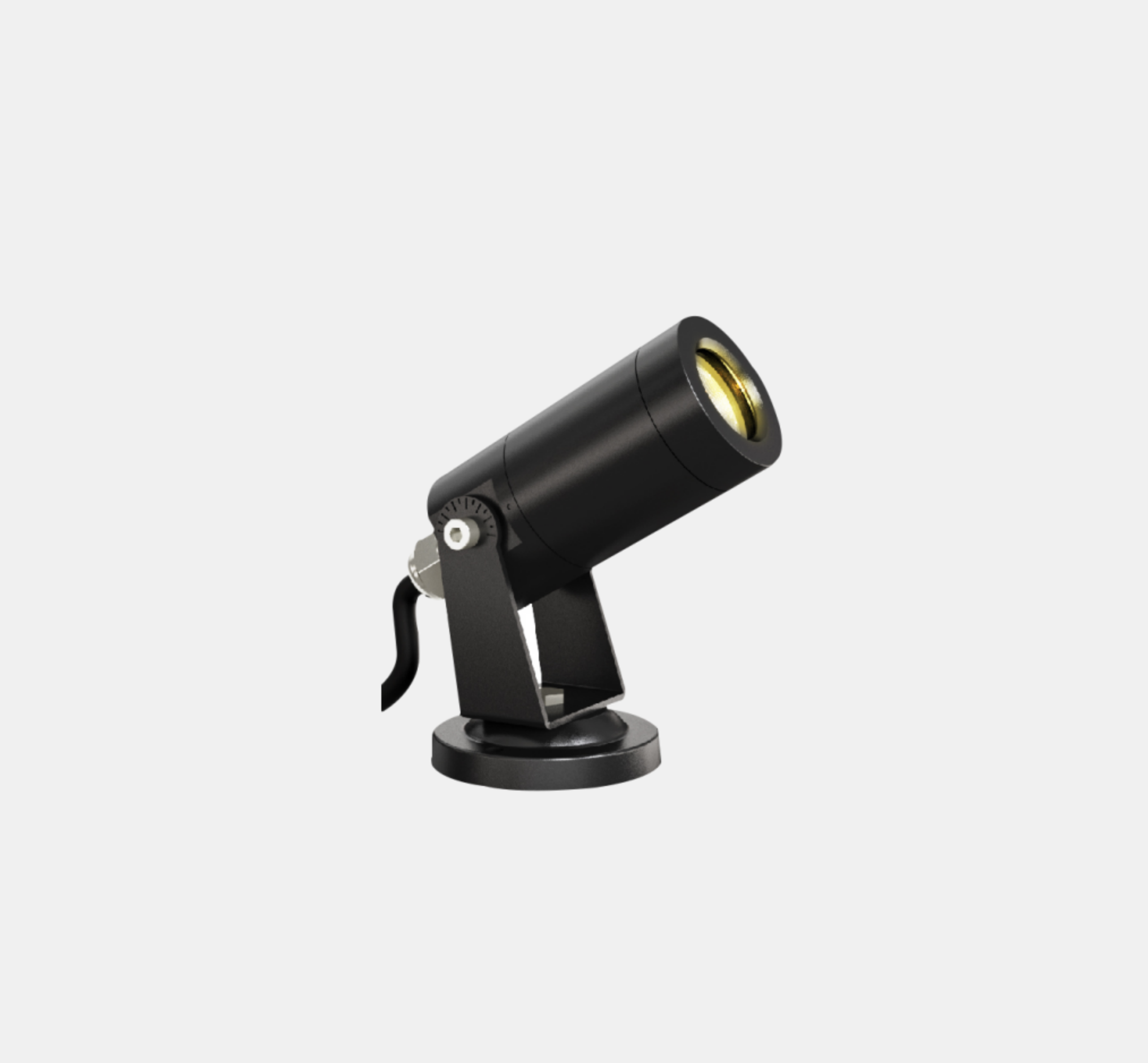

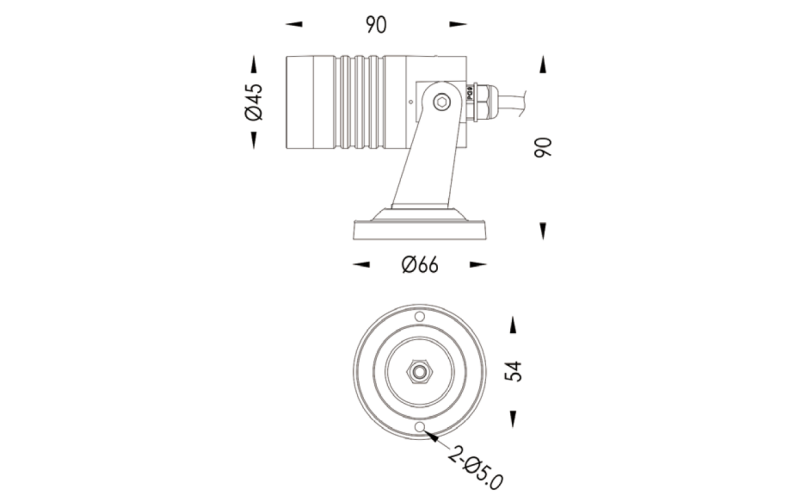

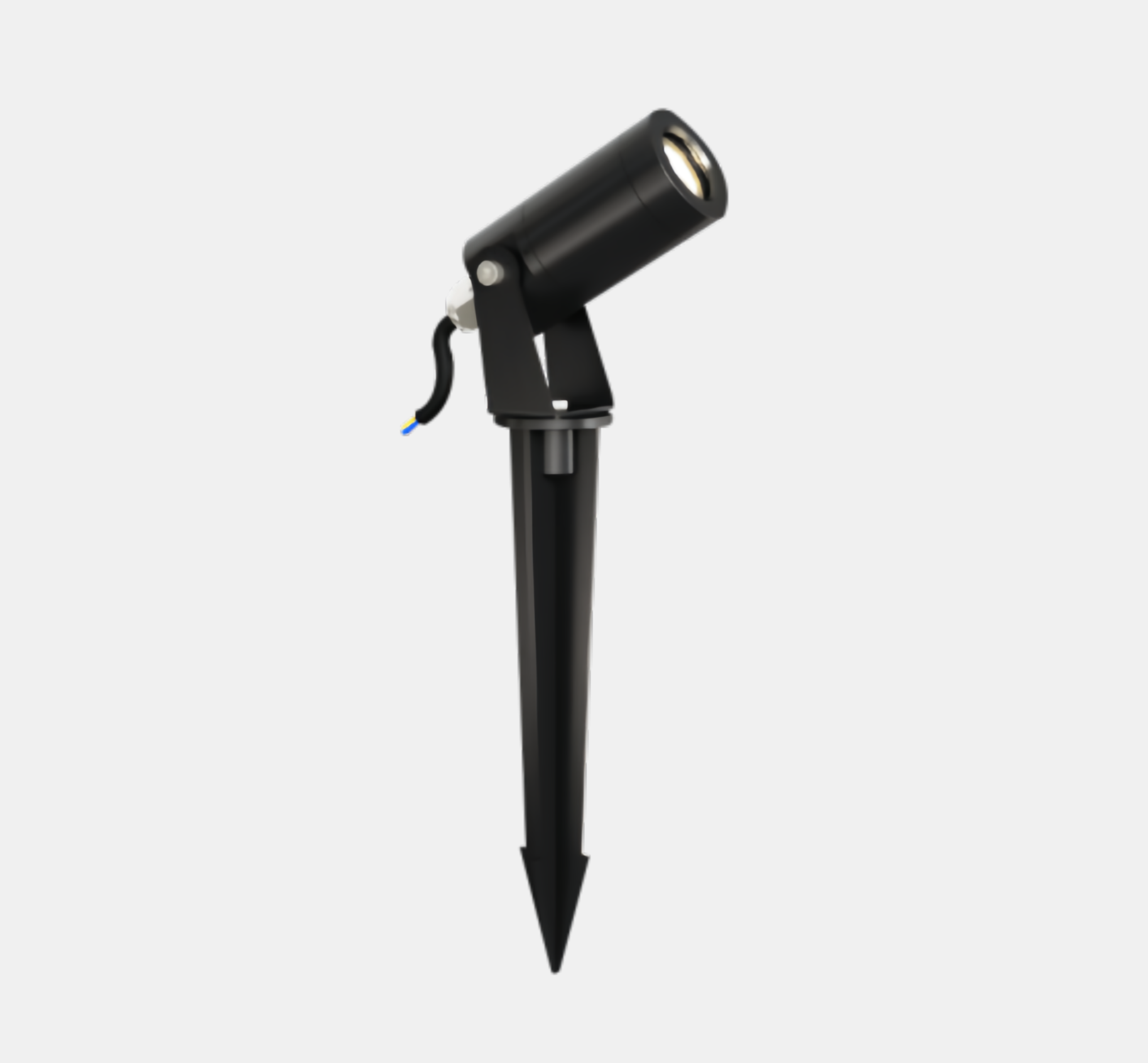

LS3045	1×4W	4W	5°/8°/10°/30°/40°/60°	12/24VDC 220-240VAC	D45L90H90mm	2700K-6500K R/G/B	380lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3045	1×6W	6W	15°/ 24°/ 36°/ 55°	12/24VDC 220-240VAC	D45L90H90mm	2700K-6500K	465lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3045	1×3W	3W	20°/ 30°/ 40°/ 60°	12/24VDC	D45L90H90mm	RGB 3in1	60lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3045	1×4W	4W	20°/ 30°/ 40°/ 60°	12/24VDC	D45L90H90mm	RGB 4in1	80lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512

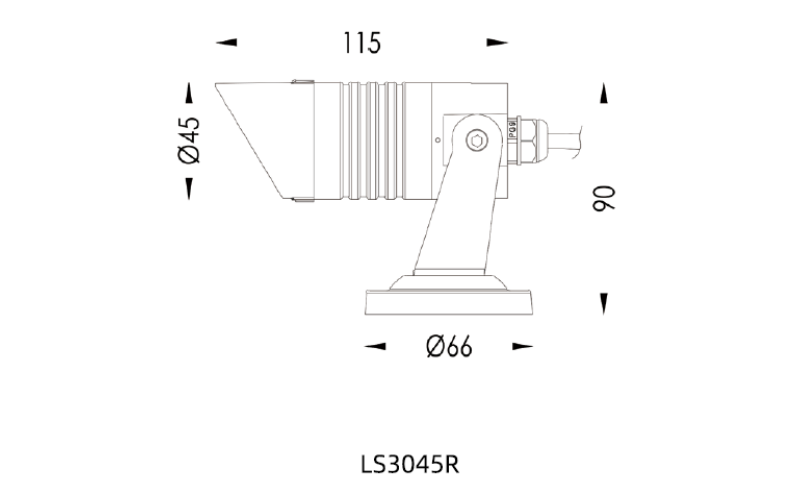

LS3045R	1×4W	4W	5°/8°/10°/30°/40°/60°	12/24VDC 220-240VAC	D45L115H90mm	2700K-6500K R/G/B	380lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3045R	1×6W	6W	15°/ 24°/ 36°/ 55°	12/24VDC 220-240VAC	D45L115H90mm	2700K-6500K	465lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3045R	1×3W	3W	20°/ 30°/40°/ 60°	12/24VDC	D45L115H90mm	RGB 3in1	60lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3045R	1×4W	4W	20°/ 30°/40°/ 60°	12/24VDC	D45L115H90mm	RGB 4in1	80lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512

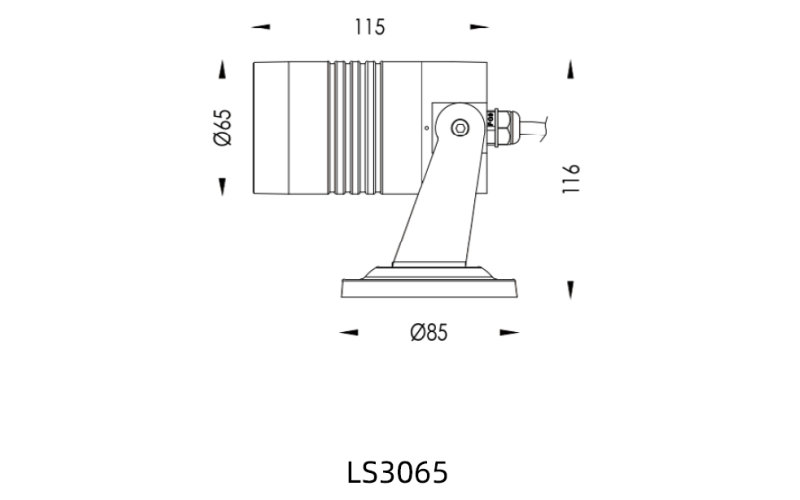

LS3065	3×4W	12W	5°/ 8°/ 10°/30°/40°/60°	12/24VDC 220-240VAC	D65L115H116mm	2200-6500K	960lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3065	1×12W	12W	15°/24°/36°/55°	12/24VDC 220-240VAC	D65L115H116mm	2700-6000K	1260lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3065	3×2.5W	8W	20°/ 30°/40°/ 60°	12/24VDC	D65L115H116mm	RGB 3in1	220lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3065	3×3.5W	10.5W	20°/ 30°/40°/ 60°	12/24VDC	D65L115H116mm	RGB 4in1	260lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512

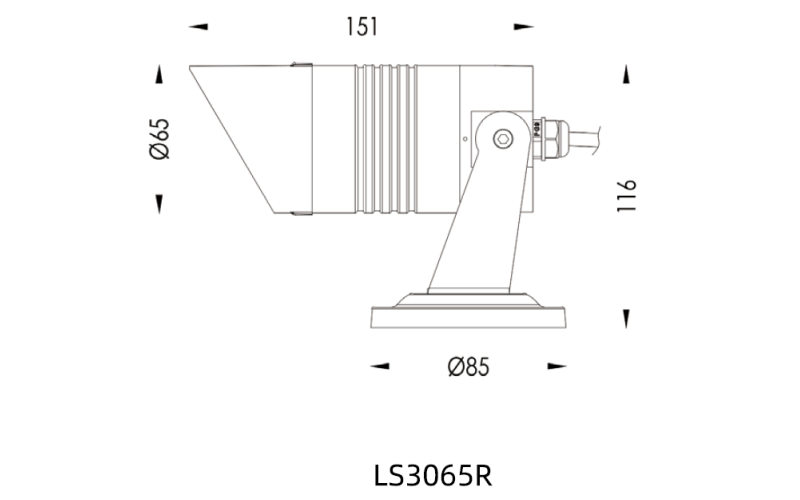

LS3065R	3×4W	12W	5°/ 8°/10°/ 30°/40°/60°	12/24VDC 220-240VAC	D65L151H116mm	2200-6500K	960lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3065R	1×12W	12W	15°/ 24°/36°/ 55°	12/24VDC 220-240VAC	D65L151H116mm	2700-6000K	1260lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3065R	3×2.5W	8W	20°/30°/40°/60°	12/24VDC	D65L151H116mm	RGB 3in1	220lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3065R	3×3.5W	10.5W	20°/30°/40°/60°	12/24VDC	D65L151H116mm	RGB 4in1	260lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512

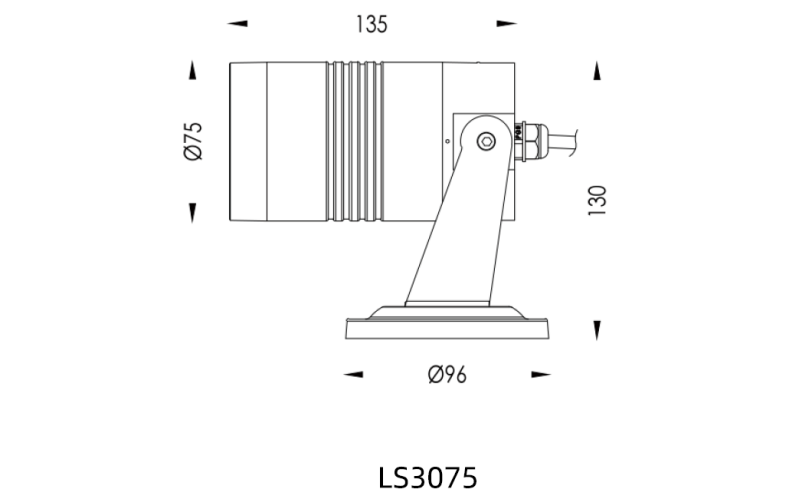

LS3075	4×4W	16W	5°/ 8°/10°/ 30°/40°/60°	12/24VDC 220-240VAC	D75L135H130mm	2200-6500K	1280lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3075	1×16W	16W	15°/ 24°/36°/ 55°	12/24VDC 220-240VAC	D75L135H130mm	2700-6000K	1840lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3075	4×2.5W	10W	20°/ 30°/40°/ 60°	12/24VD	D75L135H130mm	RGB 3in1	250lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3075	4×3.5W	14W	20°/ 30°/40°/ 60°	12/24VD	D75L135H130mm	RGB 4in1	350lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3075R	4×4W	16W	5°/ 8°/10°/ 30°/40°/60°	12/24VDC 220-240VAC	D75L176H130mm	2200-6500K	1280lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3075R	1×16W	16W	15°/ 24°/36°/ 55°	12/24VDC 220-240VAC	D75L176H130mm	2700-6000K	1840lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3075R	4×2.5W	10W	20°/ 30°/40°/ 60°	12/24VDC	D75L176H130mm	RGB 3in1	250lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
LS3075R	4×3.5W	14W	20°/ 30°/40°/ 60°	12/24VDC	D75L176H130mm	RGB 4in1	350lm	Ra＞80	IP67	Triac/PWM/1-10V/Dali/DMX512
